Lincoln Navigator: Information and Entertainment System - General Information - Vehicles With: SYNC 4 / Satellite Radio / Global Positioning System (GPS) Splitter / Cable. Removal and Installation

Lincoln Navigator 2018-2025 Workshop Manual / Information and Entertainment Systems / Information and Entertainment System - General Information - Vehicles With: SYNC 4 / Satellite Radio / Global Positioning System (GPS) Splitter / Cable. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the ACM .
Refer to: Information and Entertainment System - Component Location (415-00 Information and Entertainment System - General Information - Vehicles With: SYNC 4, Description and Operation).

Remove the glove compartment door and glove compartment storage bin.
Refer to: Glove Compartment (501-12 Instrument Panel and Console, Removal and Installation).

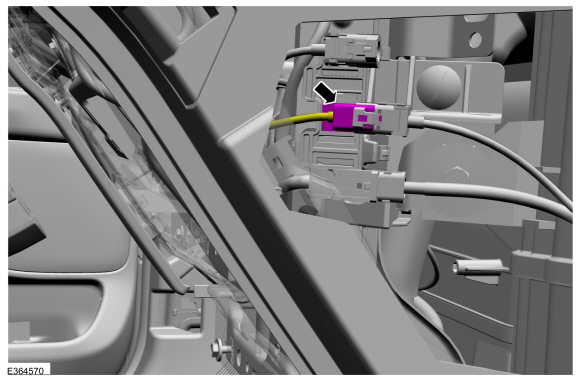

Disconnect the electrical connector and separate the wiring guide.

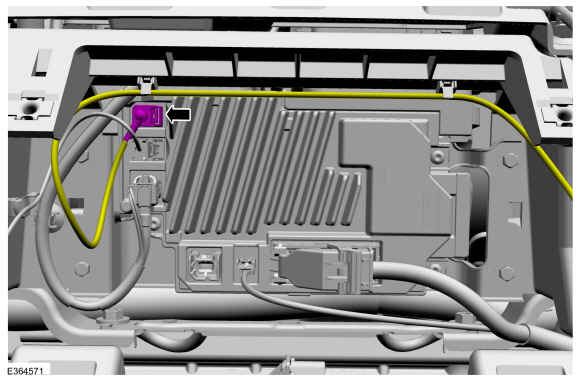

Disconnect the electrical connector.

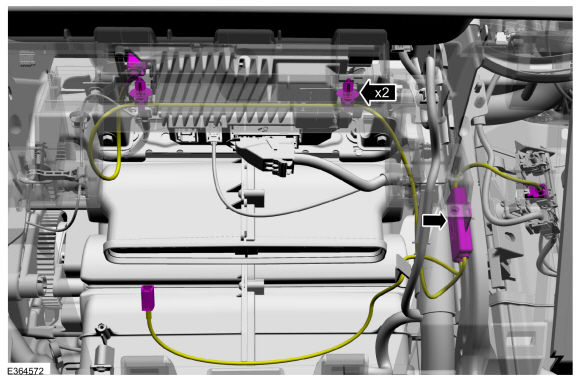

Separate the wiring guides, the splitter module and remove the satellite radio/GPS splitter/cable.

Installation

To install, reverse the removal procedure.
