Lincoln Navigator: Full Frame and Body Mounting / Trailer Hitch. Removal and Installation
Removal
NOTE: Removal steps in this procedure may contain installation details.
-
Remove the rear bumper cover.
Refer to: Rear Bumper Cover (501-19 Bumpers, Removal and Installation).
-
Disconnect the electrical connector, disengage the
retainers from trailer hitch and position aside the wiring harness.
 |
-
-

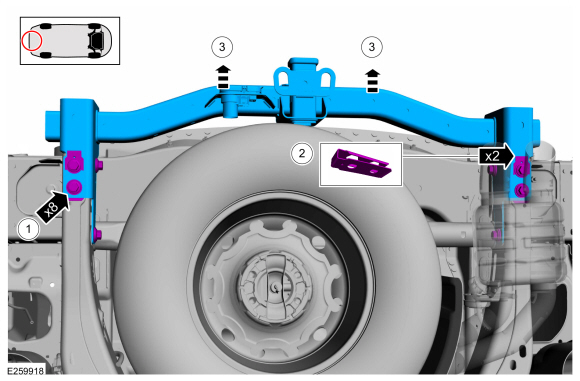

Remove the trailer hitch bolts.
Torque: 203 lb.ft (275 Nm)
-
Remove the trailer hitch retainers.
-
Remove the trailer hitch.
-
Remove the trailer hitch bolts.
 |
Installation
- To install, reverse the removal procedure.
Front Lower Control Arm Bracket. Removal and Installation
Special Tool(s) /
General Equipment
Grinder
8 mm Drill Bit
MIG/MAG Welding Equipment
Locking Pliers
Removal
Restore the vehicle to manufacturer's dimensions if required...
Transmission Support Crossmember. Removal and Installation
Special Tool(s) /
General Equipment
Transmission Jack
Removal
NOTE:
Removal steps in this procedure may contain installation details...
