Lincoln Navigator: Four-Wheel Drive Systems / All Terrain Control Module (ATCM). Removal and Installation

Lincoln Navigator 2018-2026 Workshop Manual / Automatic Transmission / Four-Wheel Drive Systems / All Terrain Control Module (ATCM). Removal and Installation

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

NOTE: Removal steps in this procedure may contain installation details.

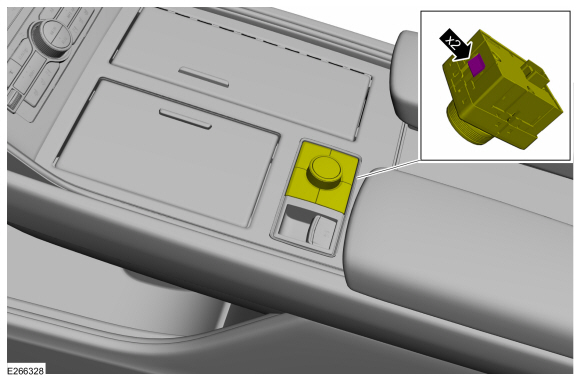

  1. Carefully pry the MSS from the center floor console panel.
    Use the General Equipment: Interior Trim Remover
  1. Disconnect the MSS harness connector and remove the switch.

Installation

  1. To install, reverse the removal procedure.
