Lincoln Navigator: Second Row Seats / Second Row Center Seat Cushion Cover. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the second row center seat.
   Refer to: Second Row Center Seat (501-10B Second Row Seats, Removal and Installation).


1.
   Release the second row center seat cushion cover front and side J-clips.

   1. Release the hook-and-loop strip and position the second row center seat cushion strap aside.

   2. Detach the J-clips.


1. On both sides.
   Remove the second row center seat cushion pivot arm covers.

   1. Raise the side of the seat cushion cover.

   2. Remove the screw.

   3. Release the retainers.


1. 1. Release the second row center seat cushion cover J-clips.

   2. On both sides.
      Detach the J-clips.

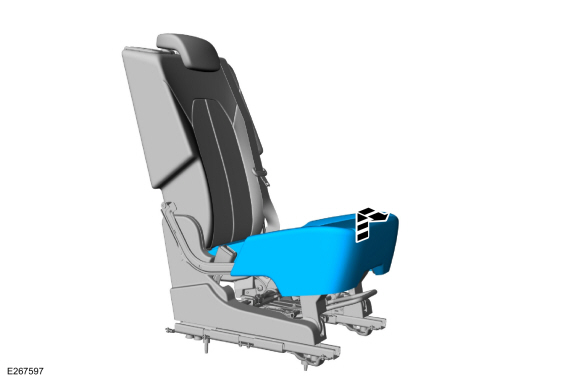

1. Remove the second row center seat cushion cover and foam.


1. NOTICE: Use care when separating the cushion cover from the hook-and-arrows, or the hooks can be torn from the cushion foam.

   NOTICE: Use care when separating the cushion cover from the hook-and-loop strips or the hook-and -loop strips may be torn from the cushion foam.

   NOTE: This step is only necessary when installing a new component.


   Remove the second row single seat cushion cover.

   1. Invert the second row center seat cushion cover.

   2. Release the hook and loop strips.

   3. Release the hook and arrows.


Installation

1. To install, reverse the removal procedure.
