Lincoln Navigator: Seatbelt Systems / Seatbelt Shoulder Height Adjuster. Removal and Installation

Lincoln Navigator 2018-2026 Workshop Manual / Body and Paint / Seatbelt Systems / Seatbelt Shoulder Height Adjuster. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH shown, RH similar.

  1. Remove the upper B-pillar trim panel.
    Refer to: B-Pillar Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

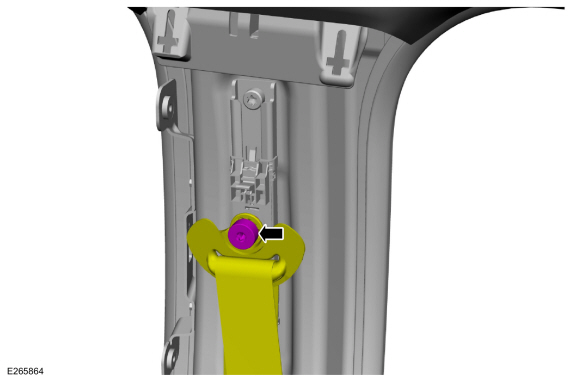

  1. Remove the bolt and position front seatbelt retractor and pretensioner D-ring aside.
    Torque: 30 lb.ft (40 Nm)

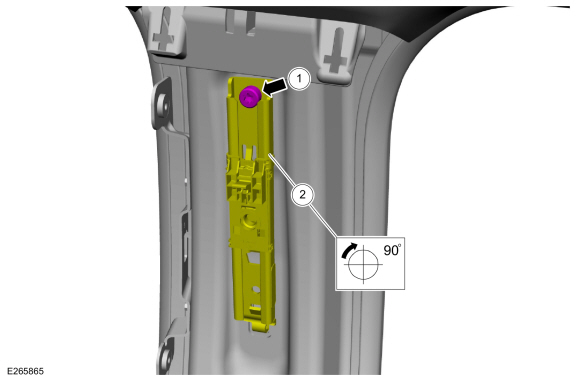

  1. Position the seatbelt shoulder height adjuster.
    1. Remove the bolt.
      Torque: 30 lb.ft (40 Nm)

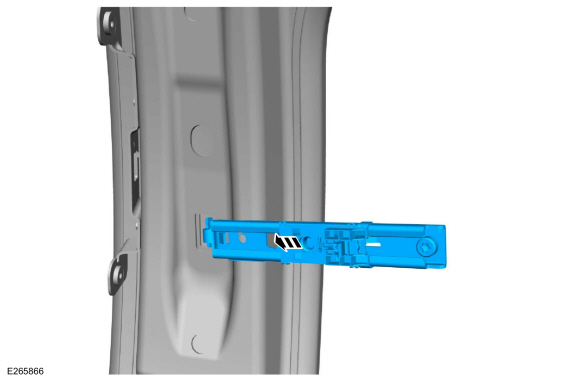

    1. Rotate the seatbelt shoulder height adjuster 90 degrees clockwise.
  1. Remove the seatbelt shoulder height adjuster.

Installation

NOTE: During installation, make sure the seatbelt webbing is not twisted and the seatbelts and buckles are accessible to the occupants.

  1. To install, reverse the removal procedure.
  1. Check the seatbelt system for correct operation.
    Refer to: Seatbelt System Functional Tests (501-20A Seatbelt Systems, General Procedures).
