Lincoln Navigator: Exterior Trim and Ornamentation / Running Board. Removal and Installation
Removal
NOTE: Removal steps in this procedure may contain installation details.
LH side shown, RH side similar.-
With the vehicle in NEUTRAL, position it on a hoist.
Refer to: Jacking and Lifting (100-02 Jacking and Lifting, Description and Operation).
-
NOTE: Short Wheel Base shown, Long Wheel Base similar.

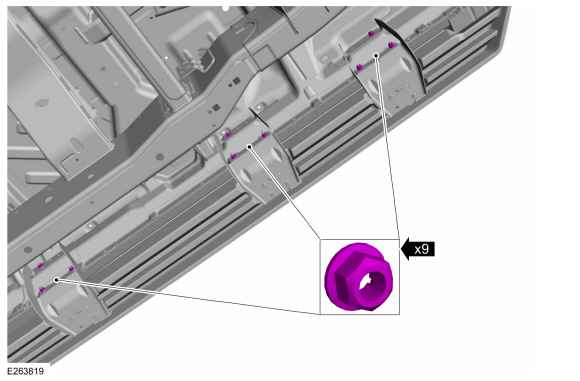

Remove the nuts from the attachment brackets.
Torque: 133 lb.in (15 Nm)
 |
-

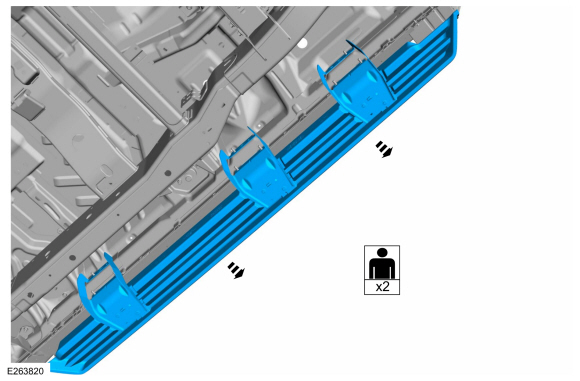

Remove the running board assembly.
 |
Installation
-
To install, reverse the removal procedure.
