Lincoln Navigator: Exterior Trim and Ornamentation / Running Board Control Module (RBM). Removal and Installation
Removal
NOTE: Removal steps in this procedure may contain installation details.
-

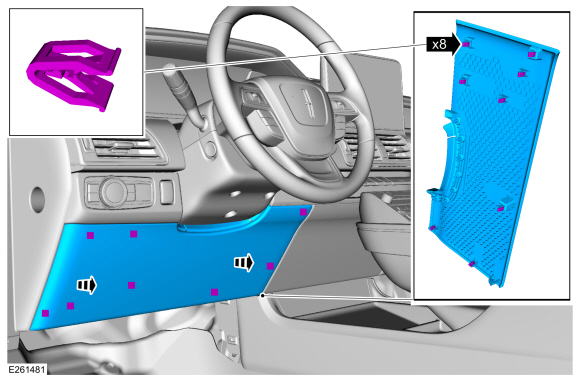

Remove the steering column opening trim panel.
 |
-
Remove the bolts and the steering column reinforcement panel.
Torque: 80 lb.in (9 Nm)
 |
-

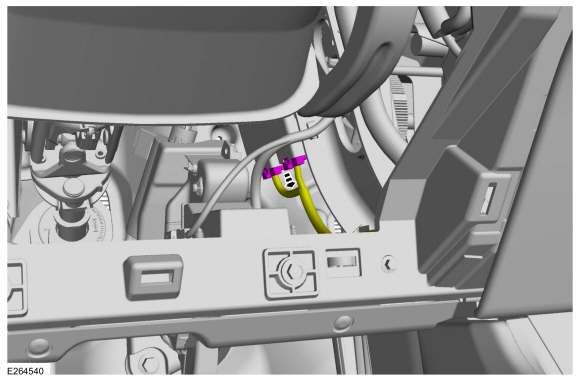

Disconnect the electrical connectors.
 |
-

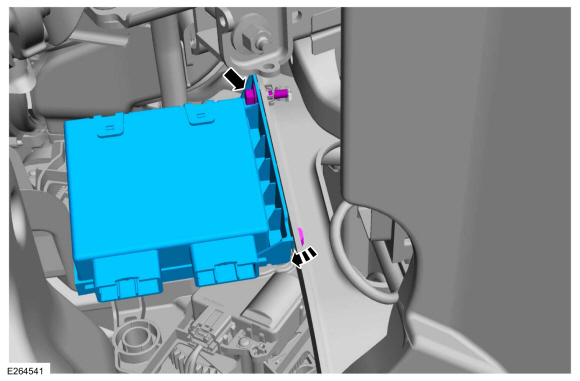

Remove the bolt and the RBM .
Torque: 80 lb.in (9 Nm)
 |
Installation
-
To install, reverse the removal procedure.
-
If a new RBM is being installed, using a diagnostic scan tool, begin
the PMI process for the RBM following the on-screen instructions.
