Lincoln Navigator: Glass, Frames and Mechanisms / Rear Door Window Control Switch. Removal and Installation
Removal
NOTE: LH side shown, RH side similar.
-
Remove the rear door trim panel.
Refer to: Rear Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
-

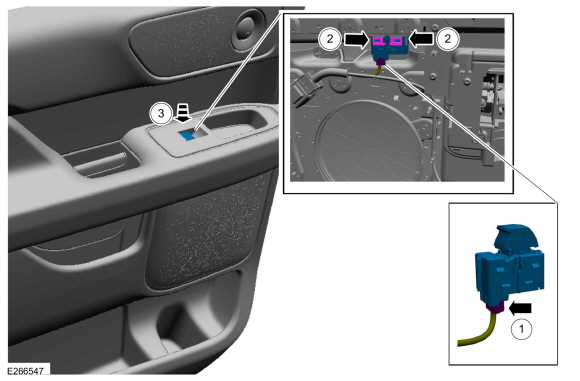

Remove the rear door window control switch.
-
Disconnect the rear door window control switch electrical connector.
-
Release the locking tabs from the rear door window control switch.
-
Remove the rear door window control switch from the rear door trim panel.
-
Disconnect the rear door window control switch electrical connector.
 |
Installation
-
To install, reverse the removal procedure.
