Lincoln Navigator: Rear Climate Control / Rear Blower Motor Speed Control. Removal and Installation
Removal
NOTE: Removal steps in this procedure may contain installation details.
-
Remove the RH loadspace trim panel.
Refer to: Loadspace Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
-
-

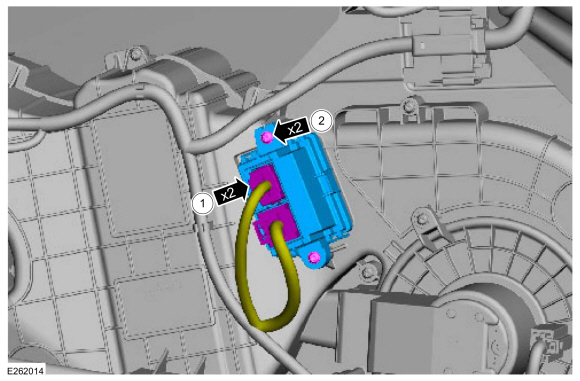

Disconnect the blower motor speed control electrical connectors.
-
Remove the retainers and the blower motor speed control.
-
Disconnect the blower motor speed control electrical connectors.
 |
Installation
-
To install, reverse the removal procedure.
Rear Blower Motor. Removal and Installation
Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove the RH loadspace trim panel.
Refer to: Loadspace Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation)...
Rear Climate Control Housing. Removal and Installation
Removal
NOTICE:
During the removal or installation of components, cap, tape
or otherwise appropriately protect all openings and tubes/fittings to
prevent the ingress of dirt or other contamination...
