Lincoln Navigator: Rear Climate Control / Rear Blower Motor. Removal and Installation
Removal
NOTE: Removal steps in this procedure may contain installation details.
-
Remove the RH loadspace trim panel.
Refer to: Loadspace Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
-
-

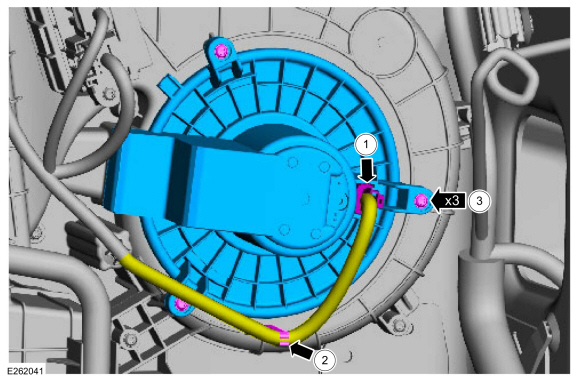

Disconnect the blower motor electrical connector.
-
Detach the rear blower motor wiring harness.
-
Remove the retainers and the rear blower motor.
-
Disconnect the blower motor electrical connector.
 |
Installation
-
To install, reverse the removal procedure.
Rear Air Distribution Door Actuator. Removal and Installation
Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove the RH loadspace trim panel.
Refer to: Loadspace Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation)...
Rear Blower Motor Speed Control. Removal and Installation
Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove the RH loadspace trim panel.
Refer to: Loadspace Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation)...
