Lincoln Navigator: Automatic Transmission - 10-Speed Automatic Transmission – 10R80 / Output Shaft Speed (OSS) Sensor. Removal and Installation
Removal
-
Remove the main control valve body.
Refer to: Main Control Valve Body (307-01 Automatic Transmission - 10-Speed Automatic Transmission – 10R80, Removal and Installation).
-

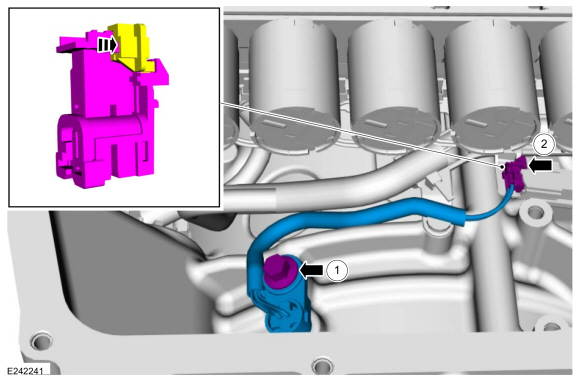

Remove the OSS sensor.
-
Slide the plastic lock to the unlocked position.
While pressing the plastic tab, disconnect the electrical connector.
-
Remove the bolt and the OSS sensor.
-
Slide the plastic lock to the unlocked position.
While pressing the plastic tab, disconnect the electrical connector.
 |
Installation
-

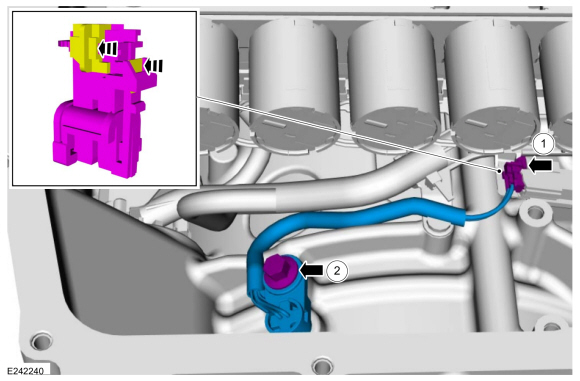

Install the OSS sensor.
-
Install the OSS sensor bolt.
Torque: 97 lb.in (11 Nm)
-
Connect the electrical connector. Slide the plastic lock to the locked position.
-
Install the OSS sensor bolt.
 |
-
Install the main control valve body.
Refer to: Main Control Valve Body (307-01 Automatic Transmission - 10-Speed Automatic Transmission – 10R80, Removal and Installation).
