Lincoln Navigator: Automatic Transmission - 10-Speed Automatic Transmission – 10R80 / Park Lock Pawl Solenoid. Removal and Installation
Removal
-
Remove the transmission fluid pan, gasket and filter.
Refer to: Transmission Fluid Pan, Gasket and Filter (307-01 Automatic Transmission - 10-Speed Automatic Transmission – 10R80, Removal and Installation).
-
Slide the plastic lock to the unlock position. While
pressing the plastic tab, disconnect the electrical connector.
 |
-

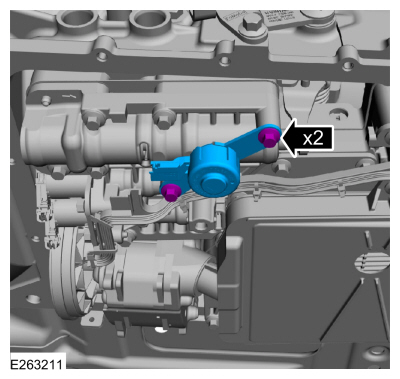

Remove the bolts and the park lock pawl solenoid.
 |
Installation
-
Install the park lock pawl solenoid and the bolts.
Torque: 106 lb.in (12 Nm)
|
-
Connect the internal wiring harness electrical connector.
-
Slide the plastic lock to the locked position.
-
Slide the plastic lock to the locked position.
 |
-
Install the transmission fluid pan, gasket and filter.
Refer to: Transmission Fluid Pan, Gasket and Filter (307-01 Automatic Transmission - 10-Speed Automatic Transmission – 10R80, Removal and Installation).
Output Shaft Speed (OSS) Sensor. Removal and Installation
Removal
Remove the main control valve body.
Refer to: Main Control Valve Body (307-01 Automatic Transmission -
10-Speed Automatic Transmission – 10R80, Removal and Installation)...
Selector Shaft Seal. Removal and Installation
Special Tool(s) /
General Equipment
307-549Installer, Shift Shaft Fluid SealTKIT-2005D1-F1
Removal
With the vehicle in NEUTRAL, position it on a hoist...
