Lincoln Navigator: Steering Wheel and Column Electrical Components / Steering Column Multifunction Switch RH. Removal and Installation
Removal
NOTE: Removal steps in this procedure may contain installation details.
-
Remove the steering column shrouds.
Refer to: Steering Column Shrouds (501-05 Interior Trim and Ornamentation, Removal and Installation).
-

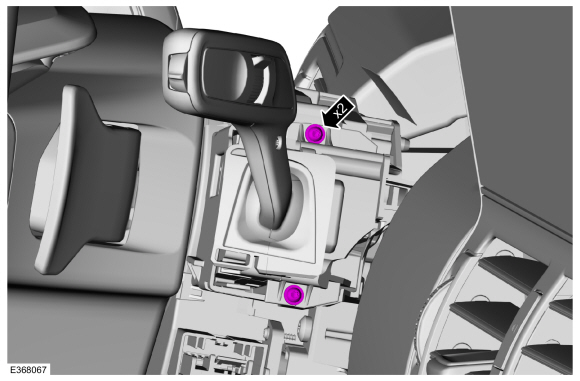

Remove the steering column multifunction switch retainers.
 |
-
Remove the steering column multifunction switch.
-
Release the clip.
-
Remove the steering column multifunction switch.
-
Release the clip.
 |
Installation
-
To install, reverse the removal procedure.
