Lincoln Navigator: Automatic Transmission External Controls / Brake Shift Interlock Override Switch. Removal and Installation
Removal
NOTE: Removal steps in this procedure may contain installation details.
-

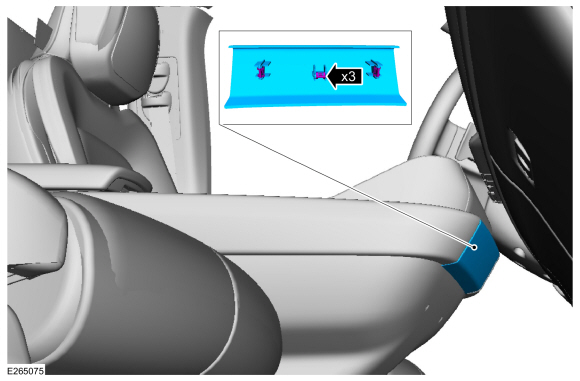

Remove the console front trim panel.
 |
-

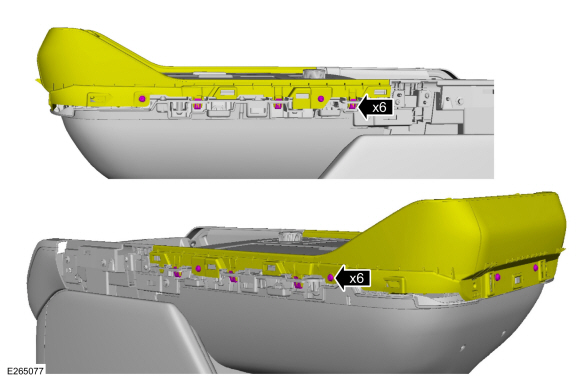

Remove the screws and the console side trim panels.
 |
-

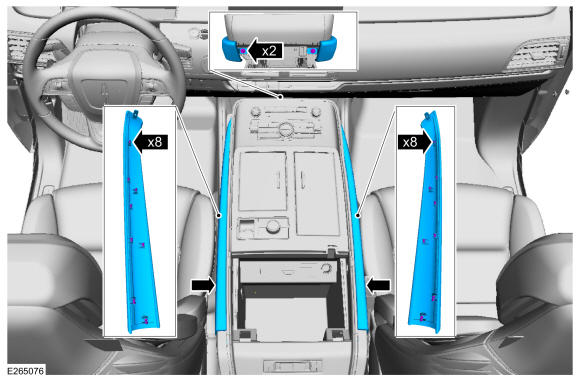

Remove the screws and position the HVAC controls and trim panel aside.
 |
-
Remove the screws and position the console center panel aside.
 |
-

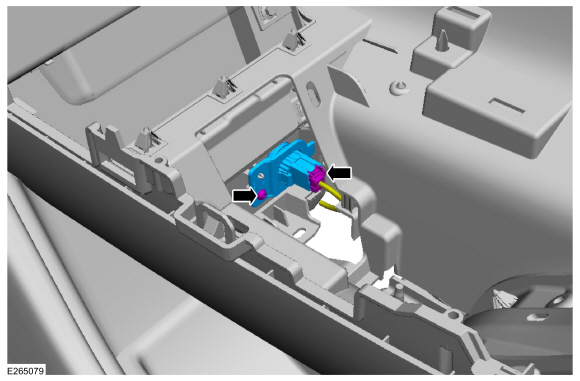

Disconnect the electrical connector and remove the screw and the brake shift interlock override switch.
 |
Installation
-
To install, reverse the removal procedure.
