Lincoln Navigator: Engine - 3.5L EcoBoost (272kW/370PS) / Hydraulic Lash Adjuster. Removal and Installation
Removal
-
Remove the roller finger follower.
Refer to: Rocker Arm (303-01 Engine - 3.5L EcoBoost (272kW/370PS), Removal and Installation).
-
Remove the hydraulic lash adjuster.
 |
Installation
-

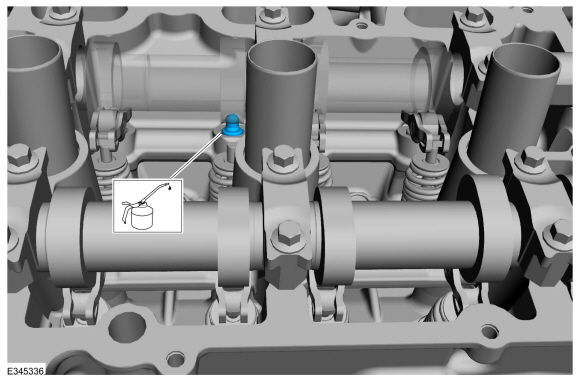

Lubricate the hydraulic lash adjuster with clean engine oil and install.
 |
-
Install the roller finger follower.
Refer to: Rocker Arm (303-01 Engine - 3.5L EcoBoost (272kW/370PS), Removal and Installation).
