Lincoln Navigator: Exterior Trim and Ornamentation / Bodyside Moulding. Removal and Installation
Removal
NOTE: Removal steps in this procedure may contain installation details.
NOTE: LWB (long wheel base) shown, SWB (short wheel base) similar.
NOTE: RH side views shown, LH side similar.
-

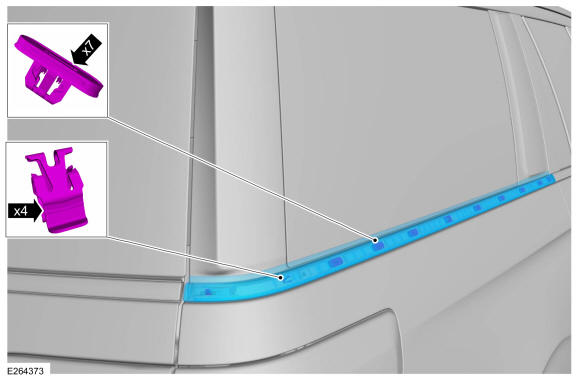

Using a non-marring trim tool, detach the push pin retainers and remove the bodyside moulding.
 |
-
Using a non-marring trim tool, detach the push pin retainers and remove the bodyside quarter panel moulding.
 |
Installation
-
To install, reverse the removal procedure.
Finish Panel Repair. General Procedures
Repair
NOTE:
Mouldings located on the front and rear window frames may
experience minor scratches from vehicle shipment or car wash racks. The
imperfections may be repaired instead of replacing components by
following the steps below...
D-Pillar Moulding. Removal and Installation
Special Tool(s) /
General Equipment
Blind Rivet Gun
6 mm Drill Bit
Removal
NOTE:
LWB (long wheel base) shown, SWB (short wheel base) similar...
