Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown RH side similar.

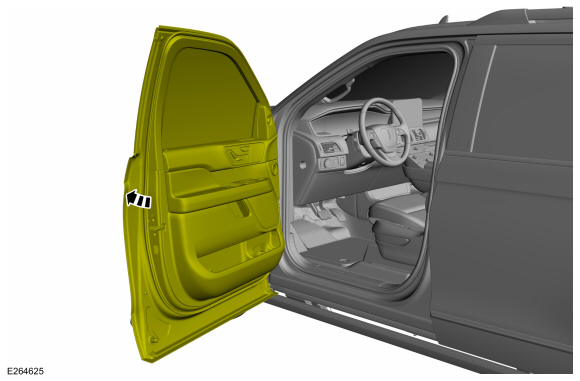

Open the front door.

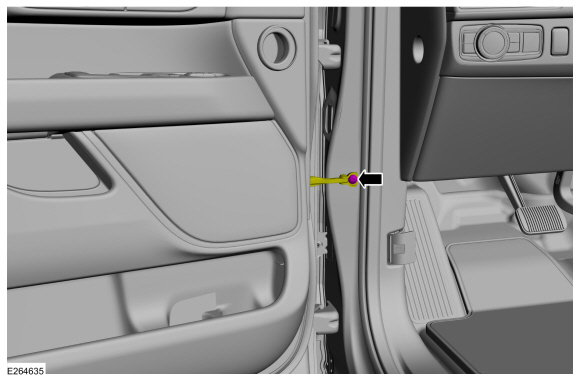

Remove the check arm bolt.
Torque: 17 lb.ft (23 Nm)

NOTICE: Take extra care not to damage the clips.

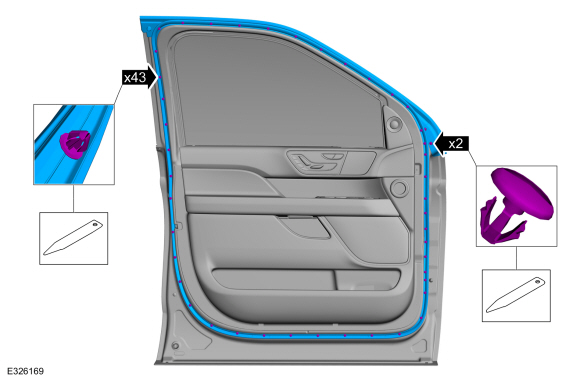

Release the clips and remove the front door weatherstrip.
Remove the General Equipment: Interior Trim Remover

Installation

To install, reverse the removal procedure.
