Lincoln Navigator: Interior Trim and Ornamentation / Front Door Trim Panel. Removal and Installation
Special Tool(s) / General Equipment
| Pick Hook | |
| Interior Trim Remover |
Removal
-
Release the clip and remove the sail panel trim panel.
-
If equipped.
Disconnect the front door tweeter speaker electrical connector.
Use the General Equipment: Interior Trim Remover
-
If equipped.
 |
-

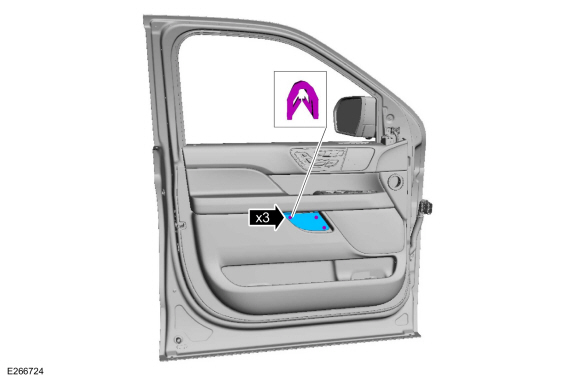

Release the clips and remove the door handle trim cover.
Use the General Equipment: Pick Hook
 |
-

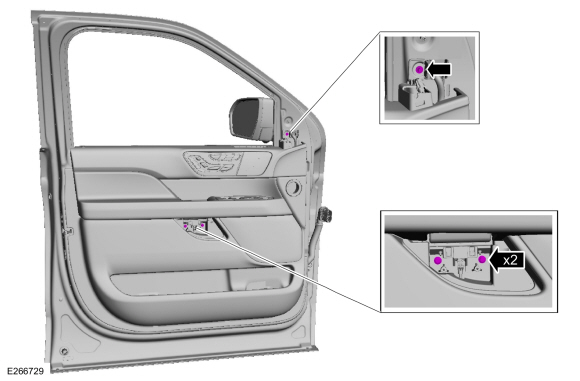

Remove the front door trim panel bolts.
 |
-
Remove the front door trim panel lower bolts.
 |
-

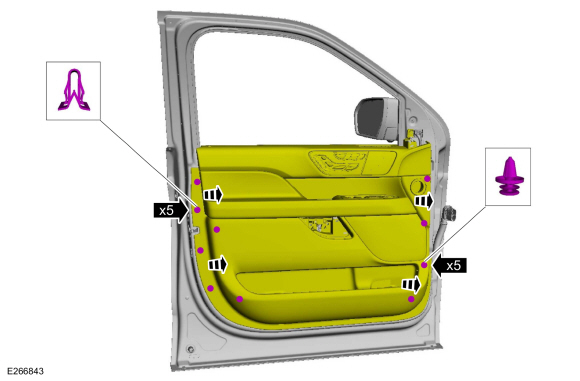

Release the front door trim panel clips.
 |
-

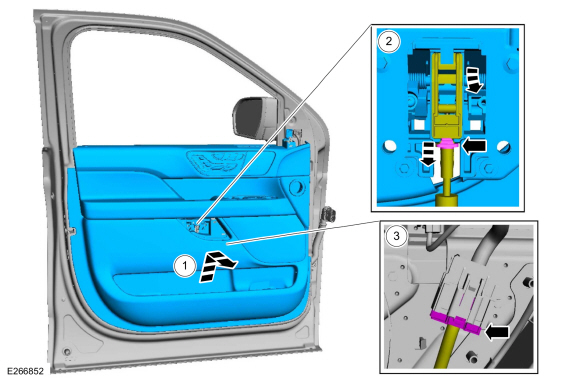

Remove the front door trim panel.
-
Lift upward and outward on the front door trim panel.
-
Release the tab and disconnect the interior front door handle cable.
-
Disconnect the front door trim panel wiring harness electrical connector.
-
Lift upward and outward on the front door trim panel.
 |
Installation
-
To install, reverse the removal procedure.
-
Transfer parts as necessary.
-
Transfer parts as necessary.
