Lincoln Navigator: Interior Trim and Ornamentation / D-Pillar Trim Panel - Long Wheelbase. Removal and Installation

Lincoln Navigator 2018-2026 Workshop Manual / Body and Paint / Interior Trim and Ornamentation / D-Pillar Trim Panel - Long Wheelbase. Removal and Installation

Removal

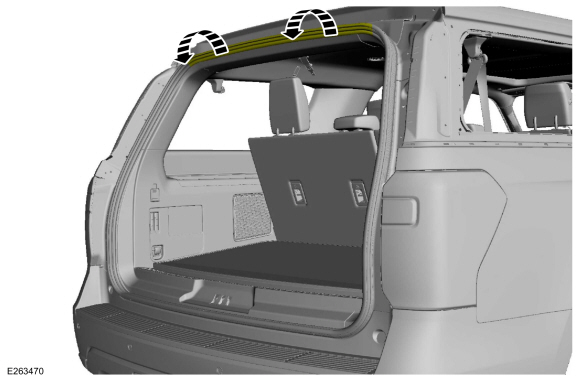

  1. Position the liftgate opening weatherstrip aside.

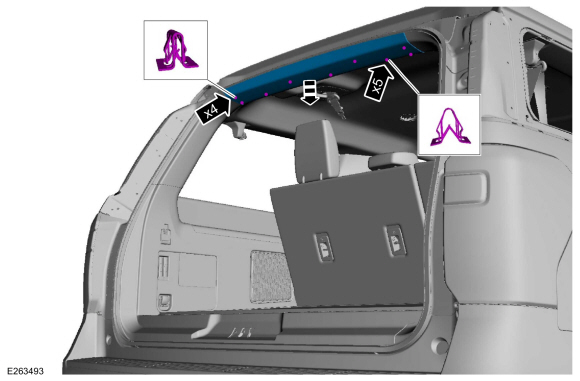

  1. Release the clips and remove the liftgate opening upper trim panel.

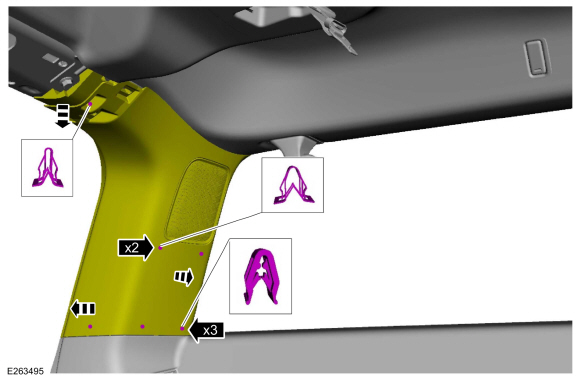

  1. Release the D-pillar trim panel clips.

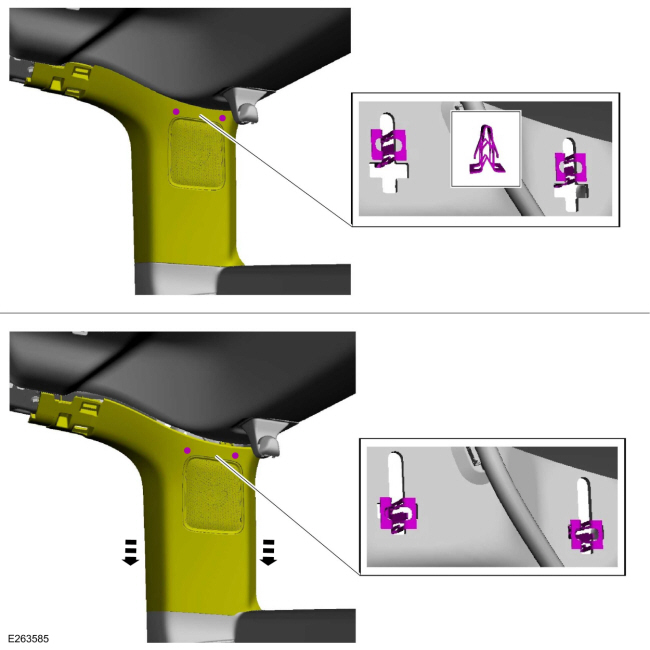

  1. NOTICE: The D-pillar must be positioned downward to allow the upper clips to release correctly. Failure to follow this direction may cause damage to the D-pillar trim panel.

    Slide the D-pillar trim panel down, aligning the clips to the slots in the sheet metal.

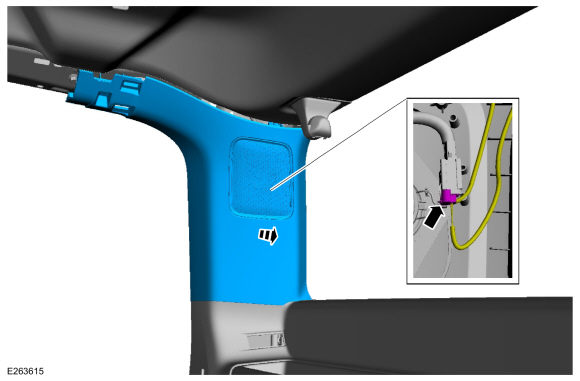

  1. Remove the D-pillar trim panel.
    • If equipped.
      Disconnect the D-pillar speaker electrical connector.

Installation

  1. To install, reverse the removal procedure.
