Removal

All vehicles

With the vehicle in NEUTRAL, position it on a hoist.
Refer to: Jacking and Lifting (100-02 Jacking and Lifting, Description and Operation).

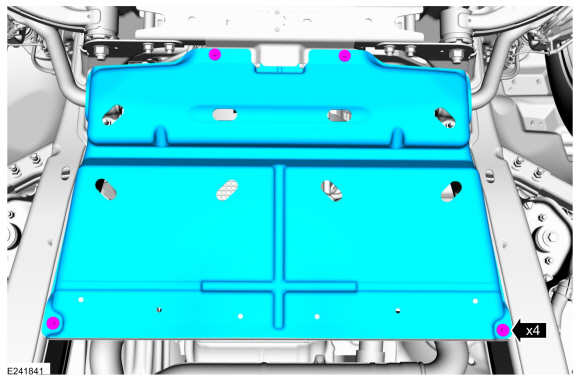

If equipped, remove the underbody shield.
Torque: 71 lb.in (8 Nm)

LHD 4WD

Remove the LH fender splash shield.
Refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).

All vehicles

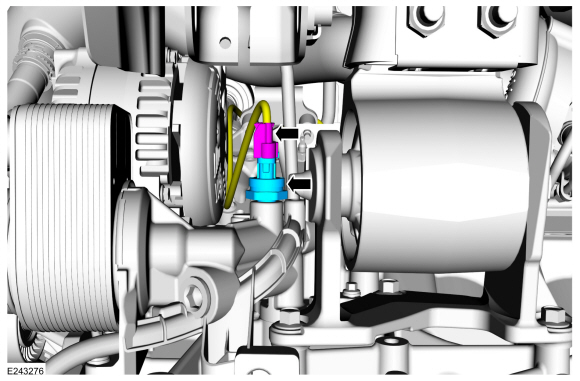

Disconnect the electrical connector and remove the EOP sensor.
Torque: 133 lb.in (15 Nm)

Installation

To install, reverse the removal procedure.
