Lincoln Navigator: Electronic Engine Controls - 3.5L EcoBoost (272kW/370PS) / Cylinder Head Temperature (CHT) Sensor. Removal and Installation

Lincoln Navigator 2018-2026 Workshop Manual / Engine / Electronic Engine Controls - 3.5L EcoBoost (272kW/370PS) / Cylinder Head Temperature (CHT) Sensor. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the RH fender splash shield.
    Refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).
  1. .

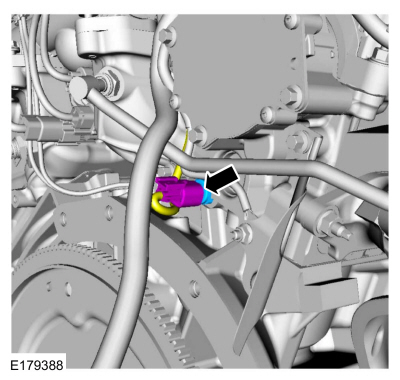

    Disconnect the CHT sensor electrical connector

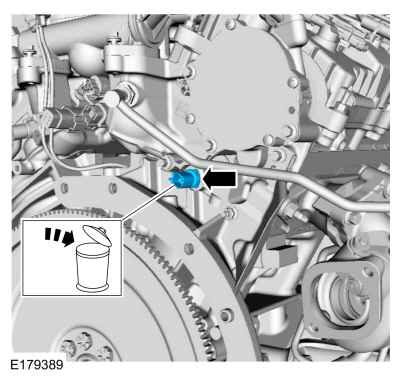

  1. NOTE: Do not reuse the CHT sensor, install a new sensor.

    Remove and discard the CHT sensor.
    Torque: 89 lb.in (10 Nm)

Installation

  1. To install, reverse the removal procedure.
