Lincoln Navigator: Cruise Control - Vehicles With: Adaptive Cruise Control / Cruise Control Radar Alignment. General Procedures

Lincoln Navigator 2018-2025 Workshop Manual / Electronic Feature Group / Cruise Control - Vehicles With: Adaptive Cruise Control / Cruise Control Radar Alignment. General Procedures

Special Tool(s) / General Equipment

Interior Trim Remover

Adjustment

Vertical Alignment

NOTE: In order to align the CCM , the front bumper trim panel must be removed to access the sensor and the vehicle must be in a wheel alignment bay station so that the vehicle is level.

NOTE: Damage to the CCM bracket may affect correct alignment. When aligning the CCM , inspect the CCM bracket for damage and repair as necessary before carrying out the alignment procedure.

  1. Using a non marring tool, remove the front bumper trim panel..
    Use the General Equipment: Interior Trim Remover
  1. Place the vehicle on a wheel alignment bay station.
  1. Locate the CCM alignment screw.
  1. NOTE: Typical application shown.

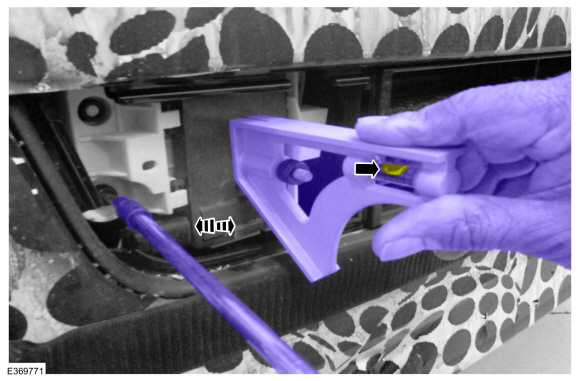

    Place a combination square level on the face of the CCM and check the alignment.
  1. Keeping the combination square level on the face of the CCM , adjust the pitch by adjusting the screw until the CCM is vertical and level.
  1. Install the front bumper trim panel.

Horizontal Alignment

NOTE: The horizontal alignment for the CCM is a software calibration check that is performed by the scan tool to insure the CCM radar is pointed straight. No manual adjustment is needed for this procedure. The scan tool calibrates the CCM through the CCM procedure in programmable parameters. The Alignment Offset specification is +/- 3.0 degrees of offset.

  1. NOTICE: The vehicle's engine must be running during the horizontal alignment procedure. Failure to leave the engine running throughout the entire procedure results in the cancellation of the alignment procedure and the system remains non-functional.

    Start the engine.
  1. NOTE: DTC s in the ABS and PCM modules can prevent the calibration from completing.

    Follow the diagnostic scan tool on-screen instructions to carry-out the CCM calibration procedure.
