Lincoln Navigator: Electronic Engine Controls - 3.5L EcoBoost (272kW/370PS) / Camshaft Position (CMP) Sensor. Removal and Installation

Lincoln Navigator 2018-2026 Workshop Manual / Engine / Electronic Engine Controls - 3.5L EcoBoost (272kW/370PS) / Camshaft Position (CMP) Sensor. Removal and Installation

Materials

Name	Specification
Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil XO-5W30-Q1SP	WSS-M2C946-B1

Removal

NOTE: Removal steps in this procedure may contain installation details.

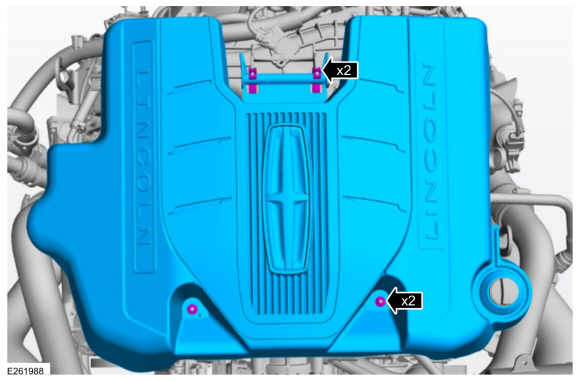

Remove the engine appearance cover retainers, release the engine appearance cover from the rear retainers and then remove the engine appearance cover.
Torque: 97 lb.in (11 Nm)

RH (right-hand) Camshaft Position (CMP) Sensors

Remove the fender splash shield.
Refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).

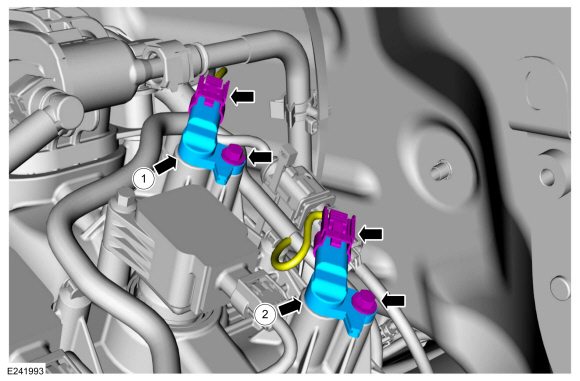

- Disconnect the electrical connector, remove the retainer and the intake CMP sensor.
  Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)
  Torque: 89 lb.in (10 Nm)
- Disconnect the electrical connector, remove the retainer and the exhaust CMP sensor.
  Torque: 89 lb.in (10 Nm)

LH (left-hand) Camshaft Position (CMP) Sensors

- Disconnect the electrical connector, remove the retainer and the intake CMP sensor.
  Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)
  Torque: 89 lb.in (10 Nm)
- Disconnect the electrical connector, remove the retainer and the exhaust CMP sensor.
  Torque: 89 lb.in (10 Nm)

Installation

NOTE: Before installation, lubricate the CMP sensor O-ring seal with clean engine oil.

To install, reverse the removal procedure.

Variable Camshaft Timing (VCT) System. Diagnosis and Testing

Diagnostic Trouble Code (DTC) Chart Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to: Diagnostic Methods (100-00 General Information, Description and Operation)...

Catalyst Monitor Sensor. Removal and Installation

Special Tool(s) / General Equipment 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen SensorTKIT-1994-LM/MTKIT-1994-FTKIT-1994-FLM/FM Materials Name Specification Motorcraft® High Temperature Nickel Anti-Seize LubricantXL-2 - Motorcraft® Penetrating and Lock LubricantXL-1 - Removal All sensors With t..
