Lincoln Navigator: Information and Entertainment System - General Information - Vehicles With: SYNC 4 / Video Display. Removal and Installation
Special Tool(s) / General Equipment
| Interior Trim Remover |
Removal
NOTE: Driver seat shown, passenger seat similar.
NOTE: Seat shown out of vehicle for clarity.
-
-
On both sides.
Detach the front seat backrest assembly from the backrest module retainers.
Use the General Equipment: Interior Trim Remover
-
On both sides.
Detach the front seat backrest assembly from the backrest module retainers.
Use the General Equipment: Interior Trim Remover
-
Fold the upper portion the front seat backrest.
-
On both sides.
 |
-
Disconnect the connectors and route the wiring through the grommets.
 |
-
Remove the access panel.
Use the General Equipment: Interior Trim Remover
 |
-

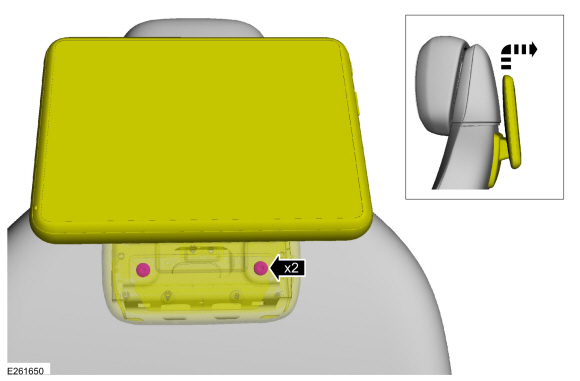

Remove the screws and position the video screen up and out.
 |
-
Separate the wiring harness fron the seat frame and remove the video display.
 |
Installation
-
To install, reverse the removal procedure.
Telematics Control Unit (TCU) Module Antenna. Removal and Installation
Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove the instrument panel.
Refer to: Instrument Panel (501-12 Instrument Panel and Console, Removal and Installation)...
Voice Microphone. Removal and Installation
Removal
Vehicles equipped with dual voice microphones
Lower the headliner.
Refer to: Headliner - Lowering (501-05 Interior Trim and Ornamentation, Removal and Installation)...
