Lincoln Navigator: Information and Entertainment System - General Information - Vehicles With: SYNC 4 / Telematics Control Unit (TCU) Module Antenna. Removal and Installation
Removal
NOTE: Removal steps in this procedure may contain installation details.
-
Remove the instrument panel.
Refer to: Instrument Panel (501-12 Instrument Panel and Console, Removal and Installation).
-

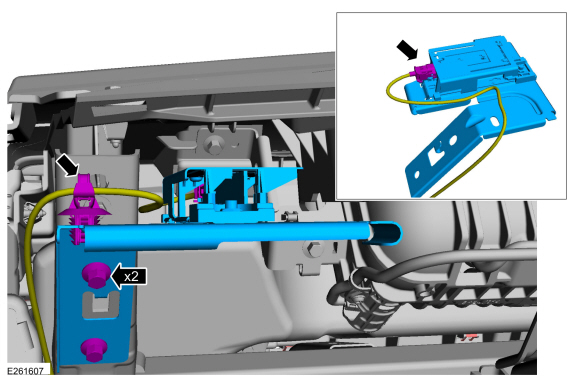

Remove the bolts, separate the wire harness guide, disconnect and remove the TCU antenna.
Torque: 71 lb.in (8 Nm)
 |
Installation
-
To install, reverse the removal procedure.
Telematics Control Unit (TCU) Module. Removal and Installation
Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
If installing a new module, it is necessary to upload the
module configuration information to the scan tool prior to removing the
module...
Video Display. Removal and Installation
Special Tool(s) /
General Equipment
Interior Trim Remover
Removal
NOTE:
Driver seat shown, passenger seat similar.
NOTE:
Seat shown out of vehicle for clarity...
Other information:
Lincoln Navigator 2018-2026 Workshop Manual: Fuel Tank and Lines - System Operation and Component Description. Description and Operation
System Operation Fuel Systems The fuel system supplies the fuel injectors with clean fuel at a controlled pressure. The PCM controls the fuel pump and monitors the fuel pump circuit. The PCM controls the fuel injector ON/OFF cycle duration and determines the correct timing and amount of fuel delivered...
Lincoln Navigator 2018-2026 Workshop Manual: Driver Status Monitor Camera Module [CMR]. Removal and Installation
Removal NOTE: If installing a new module, it is necessary to upload the module configuration information to the diagnostic scan tool prior to removing the module. This information must be downloaded into the new module after installation...
