Lincoln Navigator: Wipers and Washers / Rear Window Wiper Pivot Arm. Removal and Installation

Lincoln Navigator 2018-2026 Workshop Manual / Body and Paint / Wipers and Washers / Rear Window Wiper Pivot Arm. Removal and Installation

Special Tool(s) / General Equipment

Two Leg Puller

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. NOTE: Make sure rear wiper is in the PARK position.

    Open the wiper pivot arm nut cover.

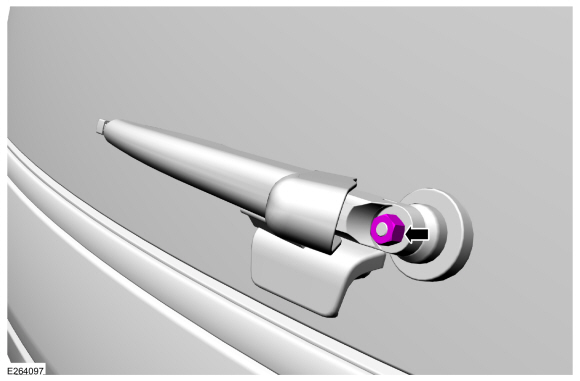

  1. Remove the wiper pivot arm nut.
    Torque: 106 lb.in (12 Nm)
  1. Remove the wiper pivot arm.
    Use the General Equipment: Two Leg Puller

Installation

  1. To install, reverse the removal procedure.
