Lincoln Navigator: Front Drive Halfshafts / Outer Constant Velocity (CV) Joint Boot. Removal and Installation

Lincoln Navigator 2018-2026 Workshop Manual / Driveline / Front Drive Halfshafts / Outer Constant Velocity (CV) Joint Boot. Removal and Installation

Special Tool(s) / General Equipment

Flat Headed Screw Driver
Boot Clamp Pliers

Removal

  1. Remove the inner CV joint boot.
    Refer to: Inner Constant Velocity (CV) Joint Boot (205-04 Front Drive Halfshafts, Removal and Installation).

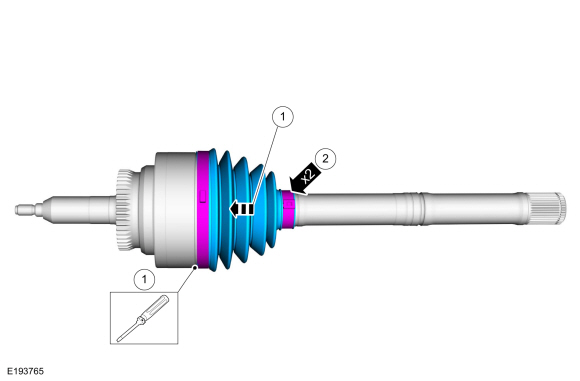

    1. Remove and discard the CV joint boot clamps.

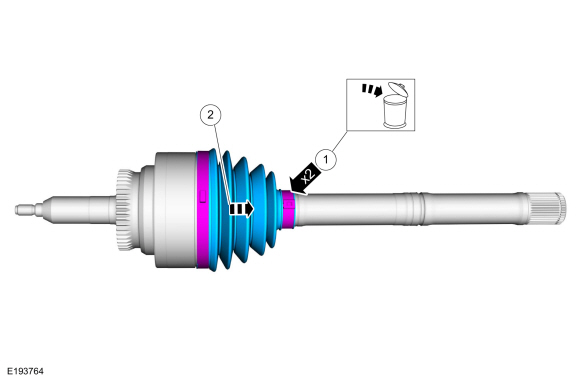

    1. Remove the CV joint boot.

Installation

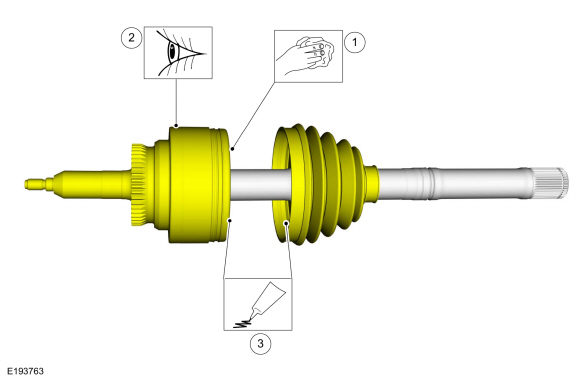

    1. Clean and inspect the CV joint cage.
    1. Inspect the outer CV joint housing for damage.
    1. Install The grease sachet evenly in theCV joint boot and housing.

  1. Install the CV joint housing.
    1. NOTE: When installing the CV joint housing, insert a small flat blade screwdriver under the CV joint boot seat to allow air to escape.

      Using a flat blade screw driver to allow air to escape, install the CV joint housing.
      Use the General Equipment: Flat Headed Screw Driver
    1. Using boot clamp pliers, install the new CV joint boot clamps.
      Use the General Equipment: Boot Clamp Pliers
  1. Install the inner CV joint boot.
    Refer to: Inner Constant Velocity (CV) Joint Boot (205-04 Front Drive Halfshafts, Removal and Installation).
