Lincoln Navigator: Handles, Locks, Latches and Entry Systems / Liftgate Latch. Removal and Installation

Lincoln Navigator 2018-2026 Workshop Manual / Body and Paint / Handles, Locks, Latches and Entry Systems / Liftgate Latch. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the liftgate trim panel.
    Refer to: Liftgate Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

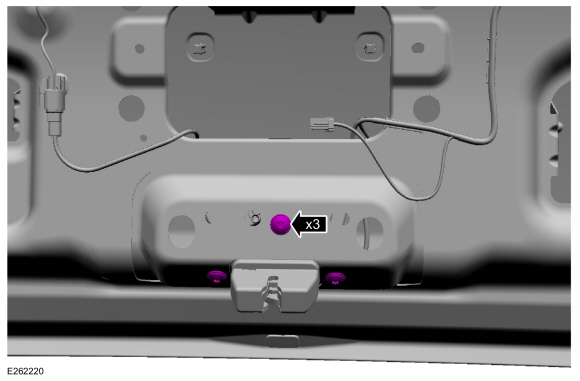

  1. Remove the liftgate latch bolts.
    Torque: 177 lb.in (20 Nm)

  1. Remove the liftgate latch.
    1. Disconnect the liftgate latch electrical connectors.
    1. Remove the liftgate latch.

Installation

  1. To install, reverse the removal procedure.
  1. Carry out the power liftgate Initialization
    Refer to: Power Liftgate Initialization (501-03 Body Closures, General Procedures).
