Lincoln Navigator: Climate Control System - General Information / Air Conditioning (A/C) Clutch Air Gap Adjustment. General Procedures

Lincoln Navigator 2018-2025 Workshop Manual / Climate Control System / Climate Control System - General Information / Air Conditioning (A/C) Clutch Air Gap Adjustment. General Procedures

Activation

NOTE: Compressor with a spring rubber clutch shown others similar.

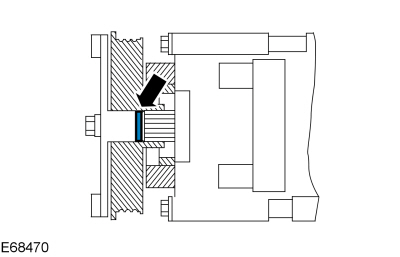

Check the A/C clutch air gap at 3 equally spaced places between the clutch plate and the A/C clutch pulley.
Refer to: Specifications (412-00 Climate Control System - General Information, Specifications).

Remove the A/C clutch.
Refer to: Air Conditioning (A/C) Clutch and Air Conditioning (A/C) Clutch Field Coil (412-00 Climate Control System - General Information, Removal and Installation).
Refer to: Air Conditioning (A/C) Clutch and Air Conditioning (A/C) Clutch Field Coil (412-00 Climate Control System - General Information, Removal and Installation).

NOTE: For some vehicles a shim kit may only be available with the A/C clutch assembly.
Add or remove spacers between the clutch plate hub and the compressor shaft until the clearance is within specification.
Refer to: Specifications (412-00 Climate Control System - General Information, Specifications).

For A/C clutch bolt or hub torque specification,
Refer to: Specifications (412-00 Climate Control System - General Information, Specifications).
