Lincoln Navigator: Wipers and Washers / Windshield Wiper Pivot Arm. Removal and Installation
Removal
NOTE: Removal steps in this procedure may contain installation details.
-

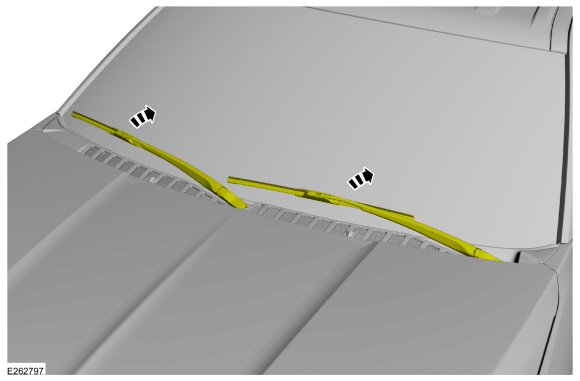

Raise the windshield wiper pivot arms into the SERVICE-UP position.
 |
-
NOTE: During installation, it is necessary to fully release the windshield wiper pivot arm latch and hold while installing the pivot arm onto the wiper linkage assembly.

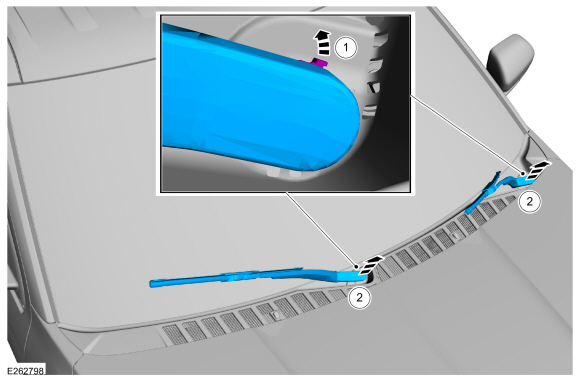

Remove the windshield wiper pivot arms.
-
Release the windshield wiper pivot arm latch.
-
Remove the windshield wiper pivot arm.
-
Release the windshield wiper pivot arm latch.
 |
Installation
-
To install, reverse the removal procedure.
