Lincoln Navigator: Third Row Seats / Third Row Seat Control Switch. Removal and Installation
Special Tool(s) / General Equipment
| Interior Trim Remover |
Removal
NOTE: LH shown, RH similar.
-

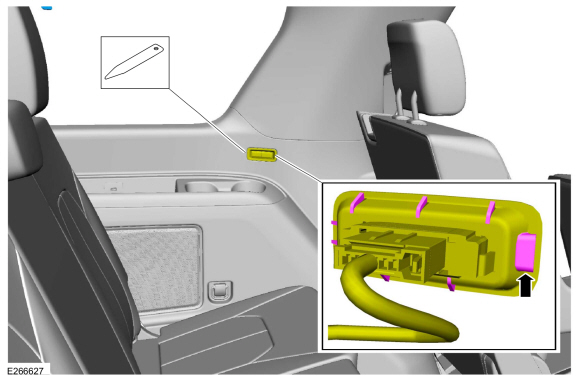

Release the tab and position the third row seat control switch and bezel away from the loadspace trim panel.
Use the General Equipment: Interior Trim Remover
 |
-
Remove the third row seat control switch.
-
Disconnect the electrical connector.
-
Release the tabs.
-
Disconnect the electrical connector.
 |
Installation
-
To install, reverse the removal procedure.
