Lincoln Navigator: Climate Control System - General Information / Sunload Sensor. Removal and Installation

Lincoln Navigator 2018-2025 Workshop Manual / Climate Control System / Climate Control System - General Information / Sunload Sensor. Removal and Installation

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

NOTE: Removal steps in this procedure may contain installation details.

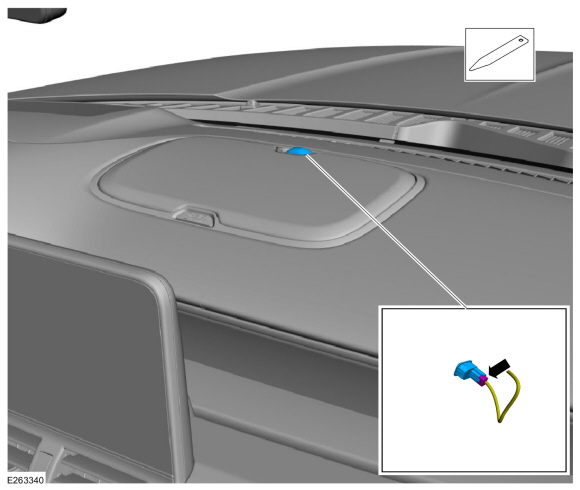

  1. Remove the sunload sensor and disconnect the electrical connector.
    Use the General Equipment: Interior Trim Remover

Installation

  1. To install, reverse the removal procedure.
