Lincoln Navigator: Rear Climate Control / Rear Climate Control - Component Location. Description and Operation
| Item | Description |
|---|---|

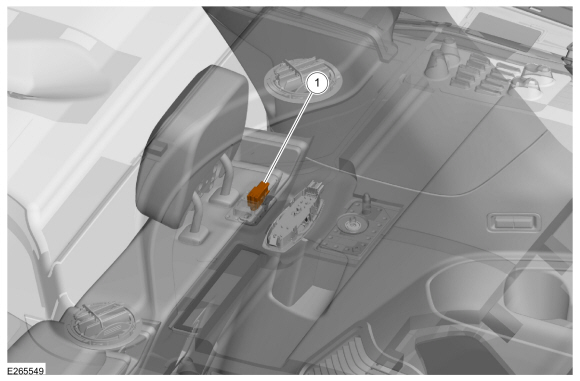

| 1 | Rear Audio Control Module |
| Item | Description |
|---|---|
| 1 | Rear Audio Control Module (location shown for optional trim packages and regions) |
| Item | Description |
|---|---|
| 1 | Rear Air Discharge Temperature Sensor |
| Item | Description |
|---|---|
| 1 | Rear Temperature Sensor |
| Item | Description |
|---|---|
| 1 | Rear Footwell Air Discharge Temperature Sensor |
| 2 | Rear Air Distribution Door Actuator |
| 3 | Rear Temperature Door Actuator |
| 4 | Rear Evaporator |
| 5 | Rear Blower Motor Speed Control |
| 6 | Rear Blower Motor |
| 7 | Rear Heater Core |

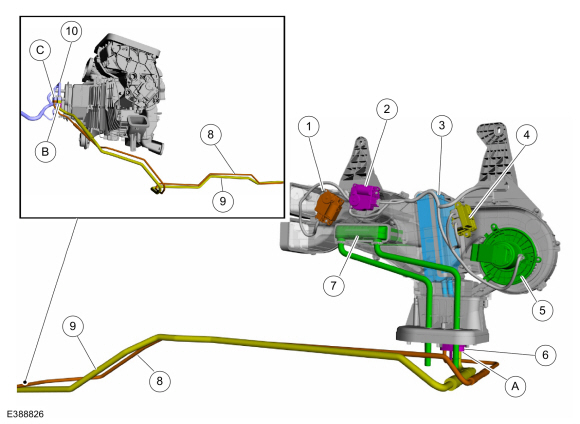

| Item | Description |
|---|---|
| 1 | Rear Air Distribution Door Actuator |
| 2 | Rear Temperature Door Actuator |
| 3 | Rear Evaporator |
| 4 | Rear blower motor speed control |
| 5 | Rear blower motor |
| 6 | Rear thermostatic expansion valve |
| 7 | Rear heater core |
| 8 | Rear evaporator outlet line |
| 9 | Rear evaporator inlet line |
| 10 | Thermostatic expansion valve |
| A | Rear thermostatic expansion valve fitting |
| B | Rear evaporator inlet line fitting |
| C | Rear evaporator outlet line fitting |
| Item | Description |
|---|---|
| 1 | Rear Climate Control Housing |
| 2 | Rear Thermostatic Expansion Valve |
| 3 | Rear Heater Core Outlet Line |
| 4 | Rear Heater Core Inlet Line |
| 5 | Rear Evaporator Rear Outlet and Inlet Line |
Rear Climate Control - System Operation and Component Description. Description and Operation
System Operation
System Diagram
*.sttxt {
visibility: hidden;
}
*.stcallout {
visibility: visible;
}
E370663
..
