Lincoln Navigator: Engine System - General Information / Piston Diameter. General Procedures

Lincoln Navigator 2018-2025 Workshop Manual / Engine / Engine System - General Information / Piston Diameter. General Procedures

Check

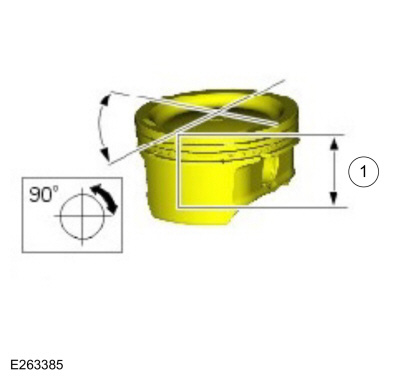

    • Measure the piston diameter 90 degrees from the piston pin and piston diameter (DN) height down from the top of the piston at the point indicated.
    • Refer to specifications for the piston diameter (DN) height.
      Refer to: Specifications (303-01) .

    Oil Pressure Test. General Procedures

    Oil Pressure Test 2.7L EcoBoost & 3.3L Duratec & 5.0L Ti-VCT NOTE: It is necessary to disconnect the battery to avoid setting any DTCs that could cause the PCM to command the oil pressure to other than what should be observed from a correctly operating system during the oil pressure test...

    Piston Inspection. General Procedures

    Inspection NOTE: Do not use a caustic cleaning solution or a wire brush to clean the pistons or damage can occur. Clean and inspect the (1) ring lands, (2) pin bosses, (3) skirts and the (4) tops of the pistons...
