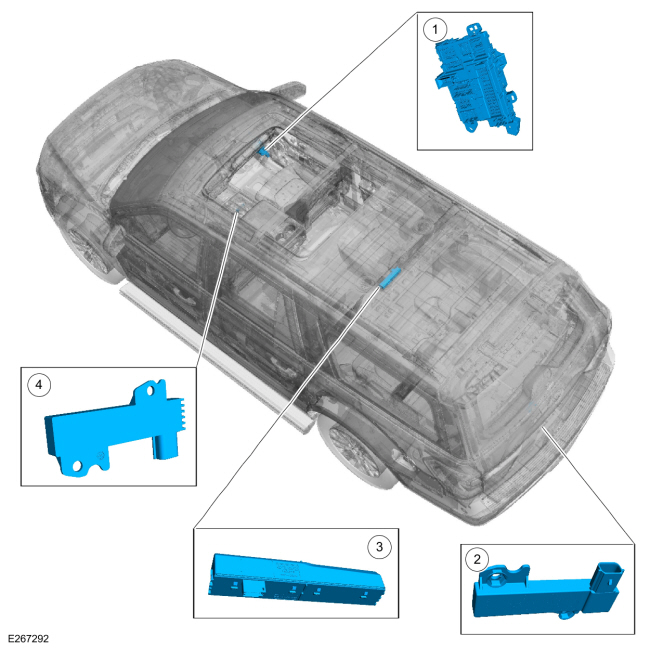

Lincoln Navigator: Passive Anti-Theft System (PATS) / Passive Anti-Theft System (PATS) - Component Location. Description and Operation
| Item | Description |
|---|---|
| 1 | BCM |
| 2 | Rear keyless entry/PATS antenna |
| 3 | RTM |
| 4 | PATS center antenna |
Passive Anti-Theft System (PATS) - Overview. Description and Operation
Overview
PATS uses the following main components:
BCM
Keyless entry rear antenna/PATS antenna
Passive key
PATS front antenna
PCM
RTM
Start/Stop Switch
When the START/STOP button is pressed, the key data is read by a
PATS antenna...
