Lincoln Navigator: Parking Aid - Vehicles With: Active Park Assist / Rear Active Park Assist Sensors. Removal and Installation

Lincoln Navigator 2018-2026 Workshop Manual / Instrumentation and Warning Systems / Parking Aid - Vehicles With: Active Park Assist / Rear Active Park Assist Sensors. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: RH side shown, LH side similar.

  1. Position the vehicle on a hoist.
    Refer to: Jacking and Lifting (100-02 Jacking and Lifting, Description and Operation).

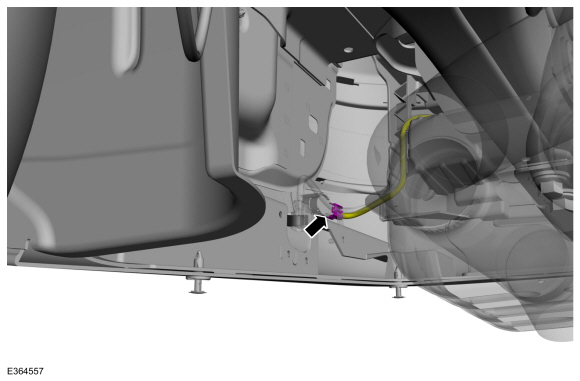

  1. Disconnect the rear active park assist sensor electrical connector.

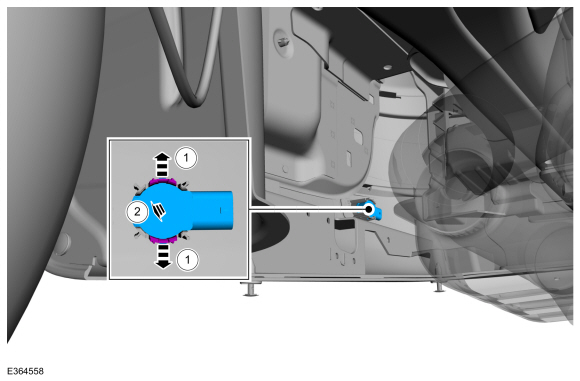

  1. Release the tabs and remove the rear active park assist sensor.

Installation

NOTE: Make sure that the isolator rings are installed correctly while installing the sensors.

  1. To install, reverse the removal procedure.
  1. Carry out the azimuth elevation check.
    Refer to: Azimuth System Check (413-13C Parking Aid - Vehicles With: Active Park Assist, General Procedures).
  1. If any sensor fails the checks, diagnose the sensor fault.
    Refer to: Parking Aid - System Operation and Component Description (413-13C Parking Aid - Vehicles With: Active Park Assist, Description and Operation).
