Lincoln Navigator: Information and Entertainment System - General Information - Vehicles With: SYNC 4 / Information and Entertainment System - Component Location. Description and Operation
NOTE: The available speaker configurations are shown first. The remaining hidden audio and SYNC system components and various cable routings follow the speaker configurations.
NOTE: Some vehicles may not be equipped with all the optional components shown.

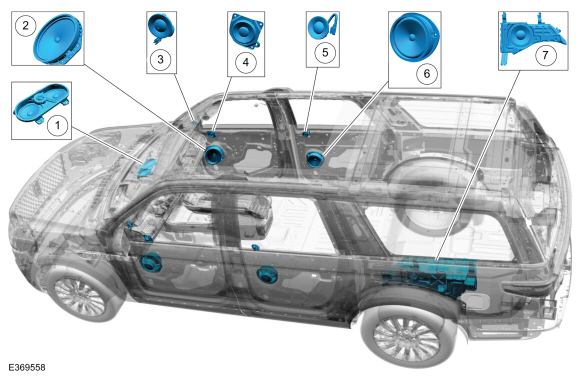

14 Speaker System
| Item | Description |
|---|---|
| 1 | Instrument panel center speaker (counted as 3 speakers) |
| 2 | Left/right front door woofer speakers |
| 3 | Left/right front tweeter door speakers |
| 4 | Left/right front midrange door speakers |
| 5 | Left/right rear door tweeter speakers |
| 6 | Left/right rear door woofer speakers |
| 7 | Subwoofer speaker |

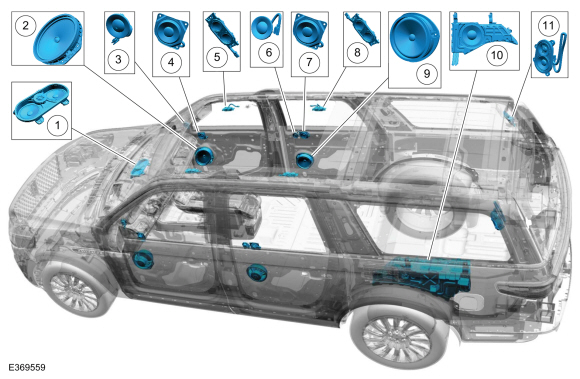

28 Speaker System
| Item | Description |
|---|---|
| 1 | Instrument panel center speaker (counted as 3 speakers) |
| 2 | Left/right front door woofer speakers |
| 3 | Left/right front tweeter door speakers |
| 4 | Left/right front midrange door speakers |
| 5 | Left/right front overhead speakers (counted as 2 speakers each) |
| 6 | Left/right rear door tweeter speakers |
| 7 | Left/right rear door midrange speakers |
| 8 | Left/right rear overhead speakers (counted as 2 speakers each) |
| 9 | Left/right rear door woofer speakers |
| 10 | Subwoofer speaker |
| 11 | Left/right D-pillar speakers (counted as 2 speakers each) |
Audio/SYNC System Hidden Components
| Item | Description |
|---|---|
| 1 | Voice microphone |
| 2 | ANC microphones |
| 3 | Secondary cellular (TCU ) antenna |
| 4 | AM / FM 1/ DAB antenna amplifier |
| 5 | APIM |
| 6 | ACM |
| 7 | TCU |
| 8 | DSP |

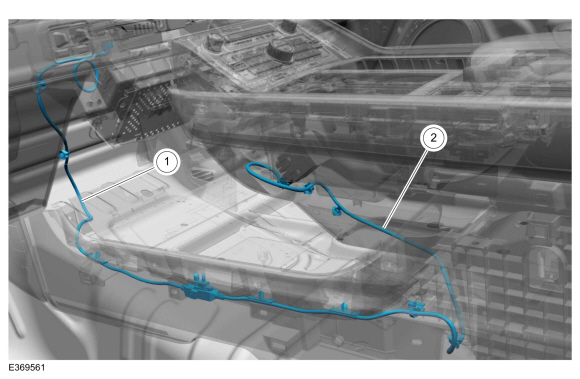

USB Cable Routing
| Item | Description |
|---|---|
| 1 | Front USB cable |
| 2 | Rear USB cable |

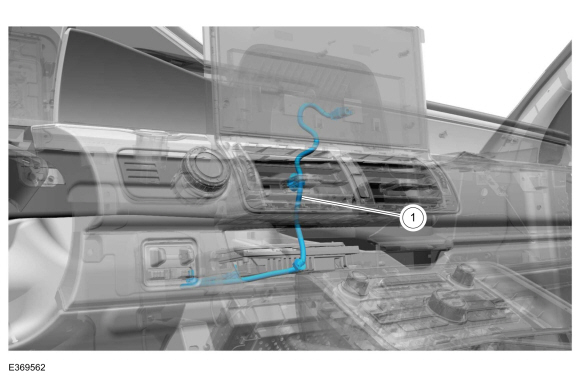

LVDS Cable Routing
| Item | Description |
|---|---|
| 1 | LVDS cable |

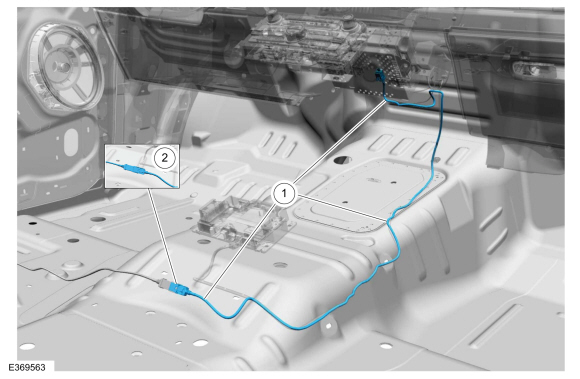

Front Automobile Audio Bus (A2B) Cable Routing
| Item | Description |
|---|---|
| 1 | Front Automobile Audio Bus (A2B) cable |
| 2 | Front Automobile Audio Bus (A2B) cable in-line connection |
Center Automobile Audio Bus (A2B) Cable Routing
| Item | Description |
|---|---|
| 1 | Center Automobile Audio Bus (A2B) cable |
| 2 | Front Automobile Audio Bus (A2B) cable in-line connection |
| 3 | Rear Automobile Audio Bus (A2B) cable in-line connection |

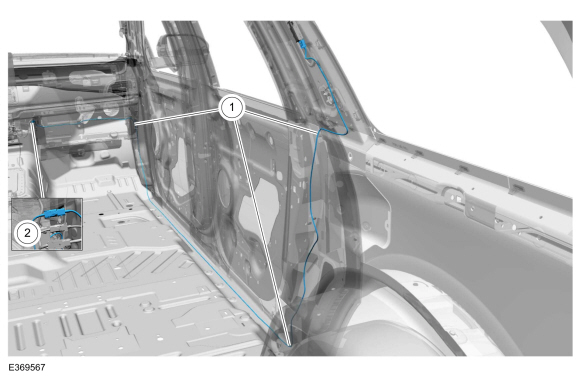

Rear Automobile Audio Bus (A2B) Cable Routing
| Item | Description |
|---|---|
| 1 | Rear Automobile Audio Bus (A2B) cable |
| 2 | Rear Automobile Audio Bus (A2B) cable in-line connection |

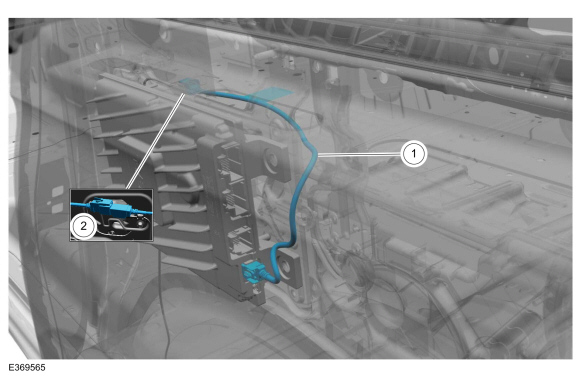

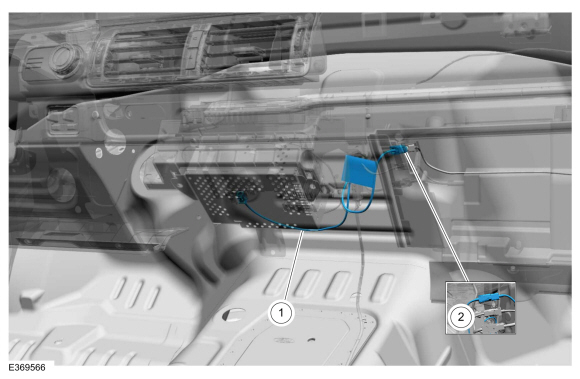

Front AM / FM 1/ DAB Antenna Cable Routing
| Item | Description |
|---|---|
| 1 | Front AM / FM 1/ DAB antenna cable |
| 2 | AM / FM 1/ DAB antenna cable in-line connection |
Rear AM / FM 1/ DAB Antenna Cable Routing
| Item | Description |
|---|---|
| 1 | Rear AM / FM 1/ DAB antenna cable |
| 2 | AM / FM 1/ DAB antenna cable in-line connection |

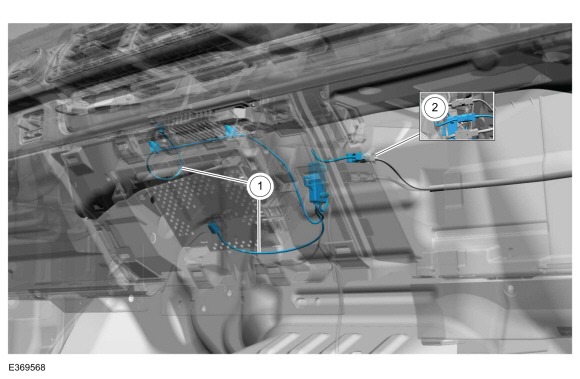

Lower GPS /Satellite Radio Antenna Cable Routing
| Item | Description |
|---|---|
| 1 | Lower GPS /satellite radio antenna cable |
| 2 | GPS /satellite radio antenna cable in-line connection |

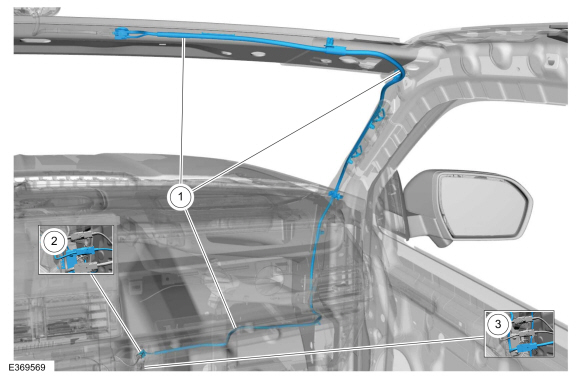

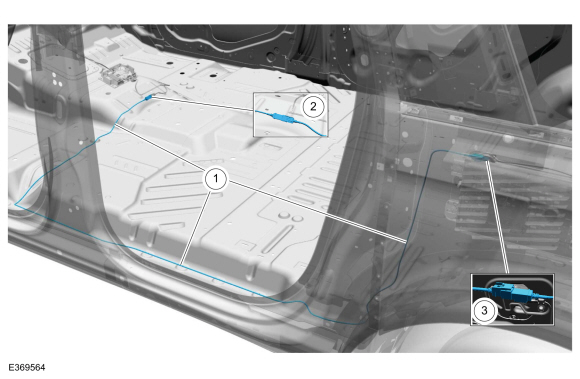

Upper GPS /Satellite Radio Antenna Cable Routing
| Item | Description |
|---|---|
| 1 | Upper GPS /satellite radio antenna cable |
| 2 | GPS /satellite radio antenna cable in-line connection |
| 3 | Primary cellular antenna cable in-line connection |
Primary and Secondary Cellular Antenna Cables Routing
| Item | Description |
|---|---|
| 1 | Primary and secondary cellular antenna cables routing |
| 2 | Primary cellular antenna cable routing |
| 3 | Secondary cellular antenna cable routing |
| 4 | Primary cellular antenna cable in-line connection |
Information and Entertainment System - System Operation and Component Description. Description and Operation
System Operation
Audio System Overview
NOTE:
Refer to the Owner Literature for additional details of the audio system.
AM / FM Radio
The ACM
can operate when the ignition is on or off...
