Lincoln Navigator: Handles, Locks, Latches and Entry Systems / Handles, Locks, Latches and Entry Systems - Component Location. Description and Operation

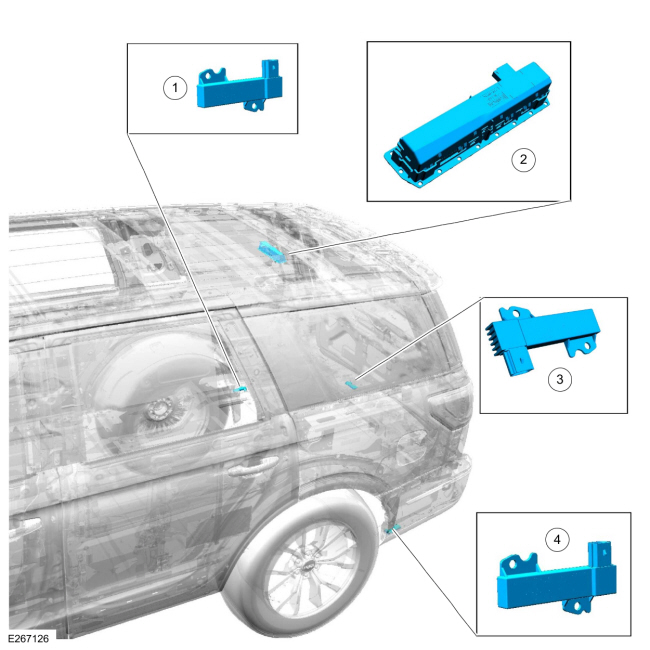

| Item |
Description |
| 1 |
RHR keyless entry antenna |
| 2 |
RTM
|
| 3 |
Rear keyless entry/PATS antenna |
| 4 |
LHR Keyless entry antenna |
| -- |
RGTM (located in LHR quarter panel) (not shown) |

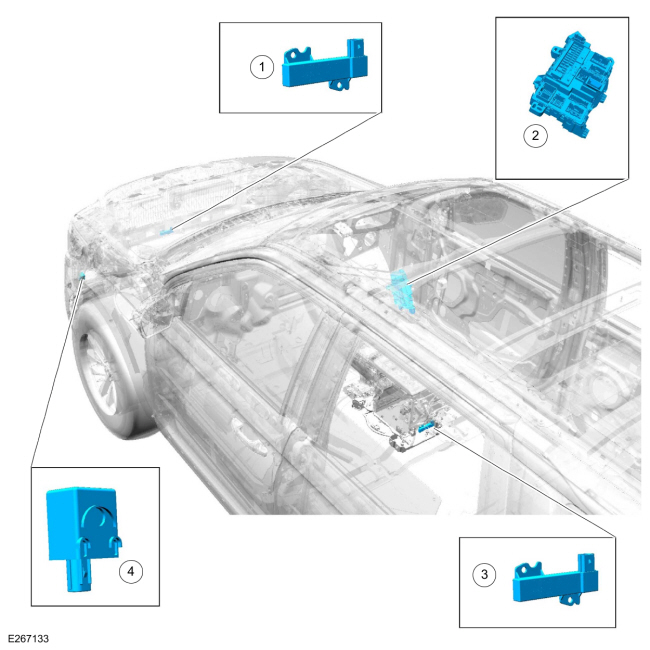

| Item |
Description |
| 1 |
Approach detection antenna |
| 2 |
BCM
|
| 3 |
Center keyless entry/PATS antenna |
| 4 |
RKE exterior sounder |
Overview
The handles, locks, latches, and entry systems consist of the following:
Main Components:
BCM
DDM
Door latches
Door lock control switches
Door lock indicators
Exterior door handles containing lock/unlock sensors
Fuel filler door lock actuator (if equipped)
Fuel filler door release switch (if equipped)
..
Other information:
Diagnostic Trouble Code (DTC) Chart
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to: Diagnostic Methods (100-00 General Information, Description and Operation).
Module
DTC
Description
Action
ABS
B10DA:51
PATS Target Identifier: Not Programmed
GO to Pinpoint Test P
ABS
C0030:07
Left Fr..
System Operation
Universal Transmitter
The universal transmitter learns a hand-held transmitter radio
frequency code and stores the code in memory. It consists of 3 buttons
with an indicator lamp. Once the universal transmitter code is stored,
the universal transmitter emits the radio frequency of the hand-held
transmitter when the corresponding button is pressed. The universal
..
