Lincoln Navigator: Front End Body Panels / Cowl Panel Grille. Removal and Installation

Lincoln Navigator 2018-2025 Workshop Manual / Body and Paint / Front End Body Panels / Cowl Panel Grille. Removal and Installation

Removal

Both sides

Remove the wiper pivot arm.
Refer to: Windshield Wiper Pivot Arm (501-16 Wipers and Washers, Removal and Installation).

LH side

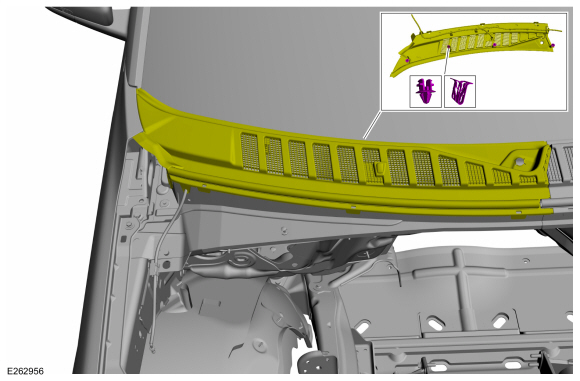

Lift the cowl trim panel to release the underside pin-type retainers.

Disconnect the windshield washer tube and remove the cowl panel grille.

RH side

Lift the cowl trim panel to release the underside pin-type retainers.

Disconnect and detach the windshield washer tube and remove the cowl panel grille.

Installation

To install, reverse the removal procedure.
