Lincoln Navigator: Climate Control System - General Information / Air Conditioning (A/C) Pressure Transducer. Removal and Installation

Lincoln Navigator 2018-2025 Workshop Manual / Climate Control System / Climate Control System - General Information / Air Conditioning (A/C) Pressure Transducer. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

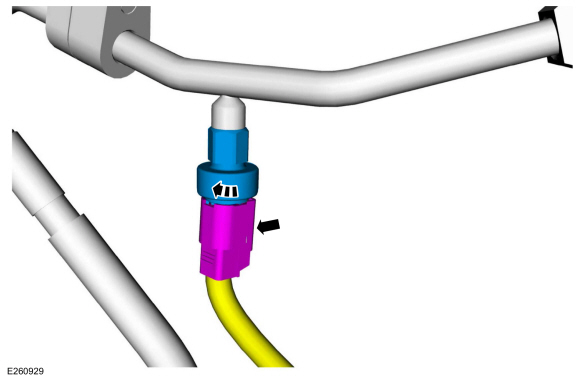

  1. Disconnect the electrical connector and remove the A/C pressure transducer.
    Torque: 71 lb.in (8 Nm)

Installation

  1. To install, reverse the removal procedure.
