Lincoln Navigator: Rear Suspension / Wheel Studs. Removal and Installation
Special Tool(s) / General Equipment
 |
211-023
(T74P-3044-A1)
C-Frame and Screw |
Removal
NOTICE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.
-
Remove the brake disc shield.
Refer to: Brake Disc Shield (206-03 Front Disc Brake, Removal and Installation).
-

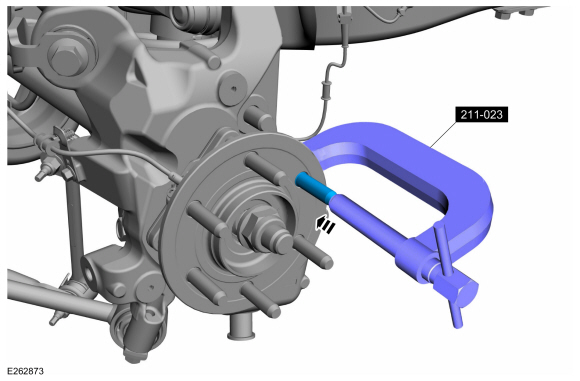

Press the wheel stud from the hub flange.
Use Special Service Tool: 211-023 (T74P-3044-A1) C-Frame and Screw.
 |
Installation
NOTE: Make sure to use washers that have an ID that is larger than the OD of the wheel stud serrations. Use enough washers (approximately 3 to 4) to allow the wheel stud to fully seat against the hub flange.
-

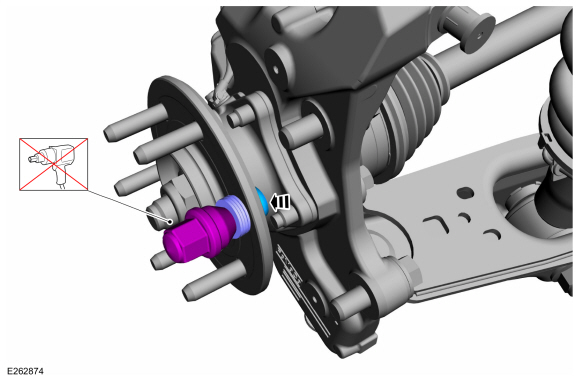

Install the wheel stud.
-
Tighten the wheel nut until the wheel stud is seated against the hub flange.
-
Discard the wheel nut.
-
Tighten the wheel nut until the wheel stud is seated against the hub flange.
 |
-
Install the brake disc shield.
Refer to: Brake Disc Shield (206-03 Front Disc Brake, Removal and Installation).
Wheel Knuckle. Removal and Installation
Special Tool(s) /
General Equipment
204-592/1Adapter for 204-592
Removal
NOTICE:
Suspension fasteners are critical parts that affect the
performance of vital components and systems...
Shock Absorber and Spring Assembly. Disassembly and Assembly
Special Tool(s) /
General Equipment
Spring Compressor
Vise
DISASSEMBLY
NOTICE:
Suspension fasteners are critical parts that affect the
performance of vital components and systems...
