Lincoln Navigator: Engine - 3.5L EcoBoost (272kW/370PS) / Variable Camshaft Timing (VCT) Unit. Removal and Installation

Lincoln Navigator 2018-2026 Workshop Manual / Engine / Engine - 3.5L EcoBoost (272kW/370PS) / Variable Camshaft Timing (VCT) Unit. Removal and Installation

Removal

NOTICE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

NOTE: If the RH VCT units are being serviced at the same time as the LH VCT units, remove the RH VCT units first.

RH variable camshaft timing (VCT) unit

Remove the RH timing chain.
Refer to: Timing Chain (303-01 Engine - 3.5L EcoBoost (272kW/370PS), Removal and Installation).

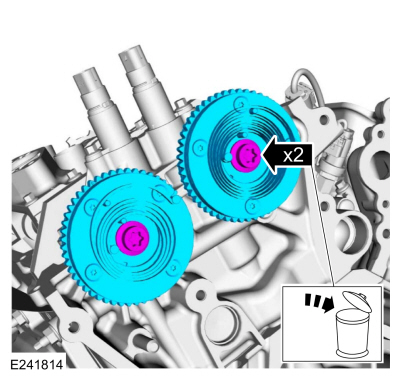

1. Remove and discard the VCT unit bolts.
1. Remove the VCT units.

LH variable camshaft timing (VCT) unit

Remove the LH timing chain.
Refer to: Timing Chain (303-01 Engine - 3.5L EcoBoost (272kW/370PS), Removal and Installation).

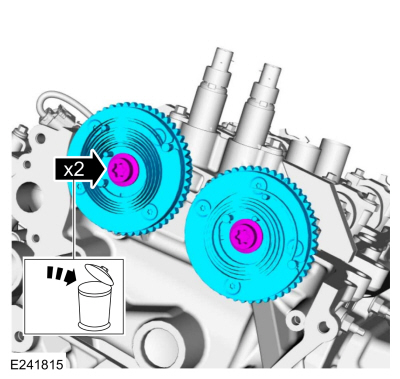

1. Remove and discard the VCT unit bolts.
1. Remove the VCT units.

Installation

LH variable camshaft timing (VCT) unit

1. Install the VCT units.

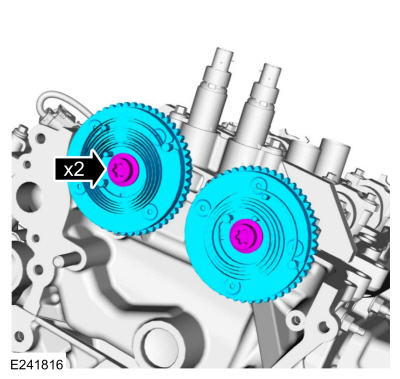

1. Install the new VCT unit bolts.
  Torque:
    Stage 1: 30 lb.ft (40 Nm)
    Stage 2: Loosen: 360°
    Stage 3: 18 lb.ft (25 Nm)
    Stage 4: 150°

Install the LH timing chain.
Refer to: Timing Chain (303-01 Engine - 3.5L EcoBoost (272kW/370PS), Removal and Installation).

RH variable camshaft timing (VCT) unit

1. Install the VCT units.
1. Install the new VCT unit bolts.
  Torque:
    Stage 1: 30 lb.ft (40 Nm)
    Stage 2: Loosen: 360°
    Stage 3: 18 lb.ft (25 Nm)
    Stage 4: 150°

Install the RH timing chain.
Refer to: Timing Chain (303-01 Engine - 3.5L EcoBoost (272kW/370PS), Removal and Installation).
