Lincoln Navigator: Seatbelt Systems / Second Row Center Seatbelt Retractor. Removal and Installation
Removal
NOTE: Removal steps in this procedure may contain installation details.
-
Remove the second row center seat backrest cover.
Refer to: Second Row Center Seat Backrest Cover (501-10B Second Row Seats, Removal and Installation).
-

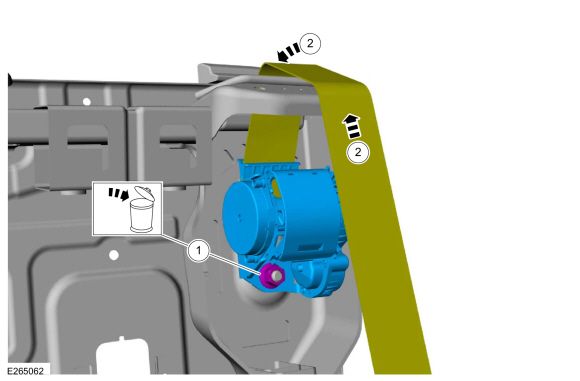

Remove the second row center seatbelt retractor.
-
Remove and discard the nut.
Torque: 30 lb.ft (40 Nm)
-
Feed the seatbelt through the seatbelt guide.
-
Remove and discard the nut.
 |
Installation
NOTE: During installation, make sure the seatbelt webbing is not twisted and the seatbelts and buckles are accessible to the occupants.
-
To install, reverse the removal procedure.
-
Check the seatbelt system for correct operation.
Refer to: Seatbelt System Functional Tests (501-20A Seatbelt Systems, General Procedures).
Second Row Center Seatbelt Buckle. Removal and Installation
Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove the second row center seat.
Refer to: Second Row Center Seat (501-10B Second Row Seats, Removal and Installation)...
Second Row Seatbelt Buckle. Removal and Installation
Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
Left-hand (LH) shown, right-hand (RH) similar.
Remove the second row seat...
