Lincoln Navigator: Rear Climate Control / Rear Temperature Door Actuator. Removal and Installation
Removal
NOTE: Removal steps in this procedure may contain installation details.
-
Remove the RH loadspace trim panel.
Refer to: Loadspace Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
-
-

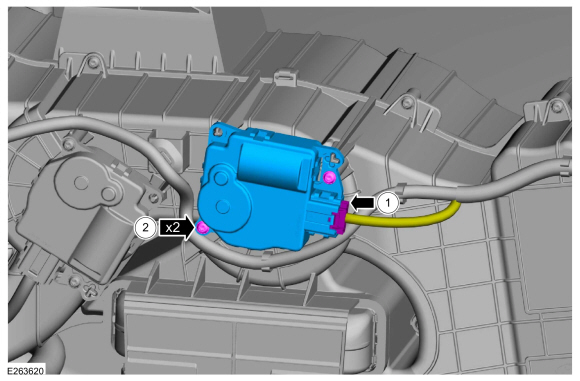

Disconnect the rear temperature door actuator electrical connector.
-
Remove the retainers and the rear temperature door actuator.
-
Disconnect the rear temperature door actuator electrical connector.
 |
Installation
-
To install, reverse the removal procedure.
Rear Heating, Ventilation and Air Conditioning (RHVAC) Control Module. Removal and Installation
Removal
NOTE:
The Rear HVAC control module is available only as part of the RACM .
Remove the RACM .
Refer to: Rear Audio Control Module (RACM) (415-00 Information and
Entertainment System - General Information - Vehicles With: SYNC 4,
Removal and Installation)...
Rear Temperature Sensor. Removal and Installation
Removal
NOTE:
Removal steps in this procedure may contain installation details.
Lower the headliner.
Refer to: Headliner - Lowering (501-05 Interior Trim and Ornamentation, Removal and Installation)...
Other information:
Lincoln Navigator 2018-2025 Workshop Manual: Fuel Filter. Removal and Installation
Removal NOTE: Removal steps in this procedure may contain installation details. Release the fuel pressure. Refer to: Fuel System Pressure Release (310-00 Fuel System - General Information - 3.5L EcoBoost (272kW/370PS), General Procedures)...
Lincoln Navigator 2018-2025 Workshop Manual: Brake Disc Shield. Removal and Installation
Removal NOTE: Removal steps in this procedure may contain installation details. Remove the brake disc. Refer to: Brake Disc (206-03 Front Disc Brake, Removal and Installation). Remove the bolts and the brake disc shield...
