Lincoln Navigator: Rear Climate Control / Rear Air Discharge Temperature Sensor. Removal and Installation
Removal
NOTE: Removal steps in this procedure may contain installation details.
-
Remove the RH c-pillar trim panel.
Refer to: C-Pillar Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
-

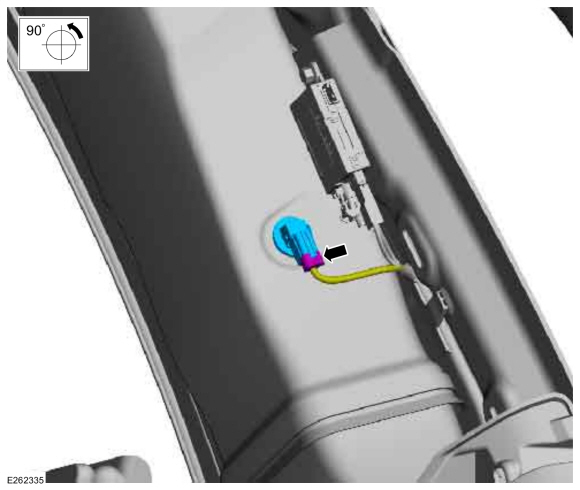

Disconnect the electrical connector and remove the rear air discharge temperature sensor.
 |
Installation
-
To install, reverse the removal procedure.
Rear Air Distribution Door Actuator. Removal and Installation
Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove the RH loadspace trim panel.
Refer to: Loadspace Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation)...
