Lincoln Navigator: Electronic Engine Controls - 3.5L EcoBoost (272kW/370PS) / Oil Pressure Control Solenoid. Removal and Installation

Lincoln Navigator 2018-2026 Workshop Manual / Engine / Electronic Engine Controls - 3.5L EcoBoost (272kW/370PS) / Oil Pressure Control Solenoid. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the engine front cover.
    Refer to: Engine Front Cover (303-01 Engine - 3.5L EcoBoost (272kW/370PS), Removal and Installation).

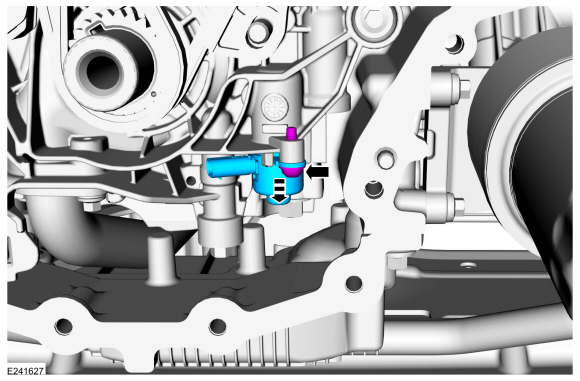

  1. Remove oil pressure control solenoid.
    Torque: 89 lb.in (10 Nm)

Installation

  1. To install, reverse the removal procedure.
