Lincoln Navigator: Exterior Lighting / Headlamp Assembly. Removal and Installation

Lincoln Navigator 2018-2026 Workshop Manual / Lighting / Exterior Lighting / Headlamp Assembly. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH (left-hand) headlamp assembly shown, RH (right-hand) similar.

  1. Remove the front bumper cover.
    Refer to: Front Bumper Cover (501-19 Bumpers, Removal and Installation).
  1. Remove the bolts and the headlamp assembly.
    Torque: 31 lb.in (3.5 Nm)

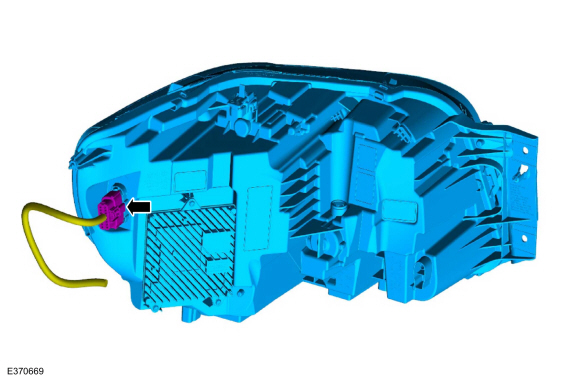

  1. Disconnect the electrical connector.

Installation

  1. To install, reverse the removal procedure.
  1. Transfer parts as required.
  1. NOTE: This step is only necessary when installing a new component.

    Adjust the headlamp assembly.
    Refer to: Headlamp Adjustment (417-01 Exterior Lighting, General Procedures).
