Lincoln Navigator: Exterior Lighting / Front Turn Signal Lamp. Removal and Installation

Lincoln Navigator 2018-2026 Workshop Manual / Lighting / Exterior Lighting / Front Turn Signal Lamp. Removal and Installation

Removal

NOTE: LH (left-hand) front turn signal lamp shown, RH (right-hand) front turn signal lamp similar.

Remove the front bumper cover.
Refer to: Front Bumper Cover (501-19 Bumpers, Removal and Installation).

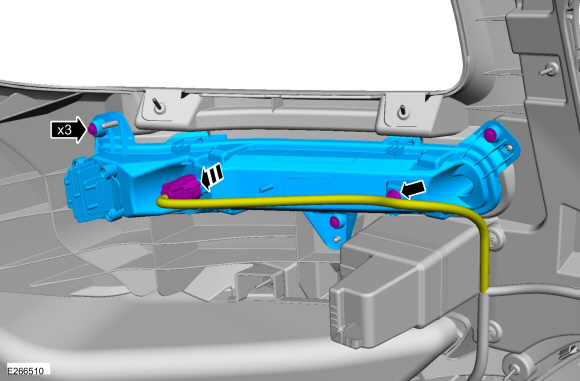

Remove the bolts and the front turn signal lamp.
- Disconnect the electrcial connector and the harness retainer.

Installation

To install, reverse the removal procedure.
