Lincoln Navigator: Front Seats / Front Head Restraint. Removal and Installation
Removal
NOTE: This procedure is for vehicles equipped with power head restraint only.
NOTE: Drivers seat shown, passenger seat similar.
-
Remove the front seat.
Refer to: Front Seat (501-10A Front Seats, Removal and Installation).
-
Remove the front seat backrest panel.
-

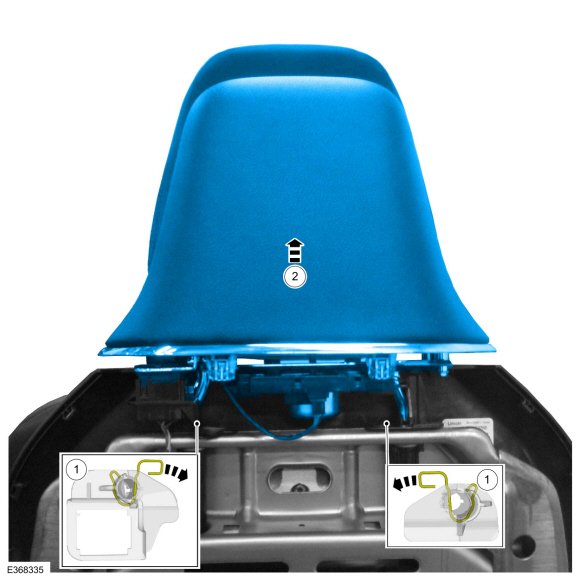

Remove the front head restraint.
-
Using your fingers, press the retaining clips toward each other to release the front head restraint posts.
-
Lift and remove the front head restraint.
-
Using your fingers, press the retaining clips toward each other to release the front head restraint posts.
 |
Installation
-
To install, reverse the removal procedure.
-
NOTE: This step is only necessary when installing a new component.
Operate the power head restraint in all directions through the full range of travel to set soft stops and avoid a premature stopping point occurrence after the vehicle is returned to the customer.
