Lincoln Navigator: Rear Drive Axle/Differential - Vehicles With: Ford 9.75 Inch Ring Gear / Differential Draining and Filling. General Procedures
Draining
-
With the vehicle in NEUTRAL, position it on a hoist.
Refer to: Jacking and Lifting (100-02 Jacking and Lifting, Description and Operation).
-

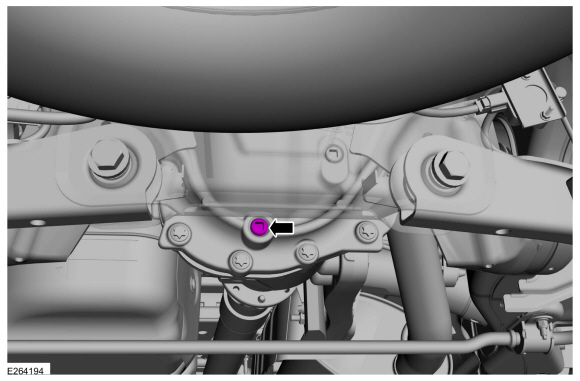

Remove the rear axle fluid drain plug and allow the axle fluid to drain.
 |
Filling
-
Install the rear axle fluid drain plug.
Torque: 18 lb.ft (25 Nm)
|
-

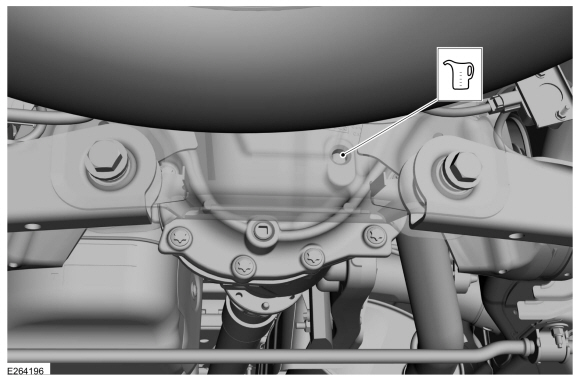

Remove the rear axle fluid fill plug.
 |
-
Fill the differential with clean differential gear lubricant.
Refer to: Specifications (205-02B) .
 |
-
Install the rear axle fluid fill plug.
Torque: 18 lb.ft (25 Nm)
|
Rear Drive Axle and Differential - Vehicles With: Electronic Limited-Slip Differential. Diagnosis and Testing
Diagnostic Trouble Code (DTC) Chart
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to: Diagnostic Methods (100-00 General Information, Description and Operation)...
Differential Fluid Level Check. General Procedures
Materials
Name
Specification
Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear LubricantXY-75W85-QL
WSS-M2C942-A
Check
With the vehicle in NEUTRAL, position it on a hoist...
